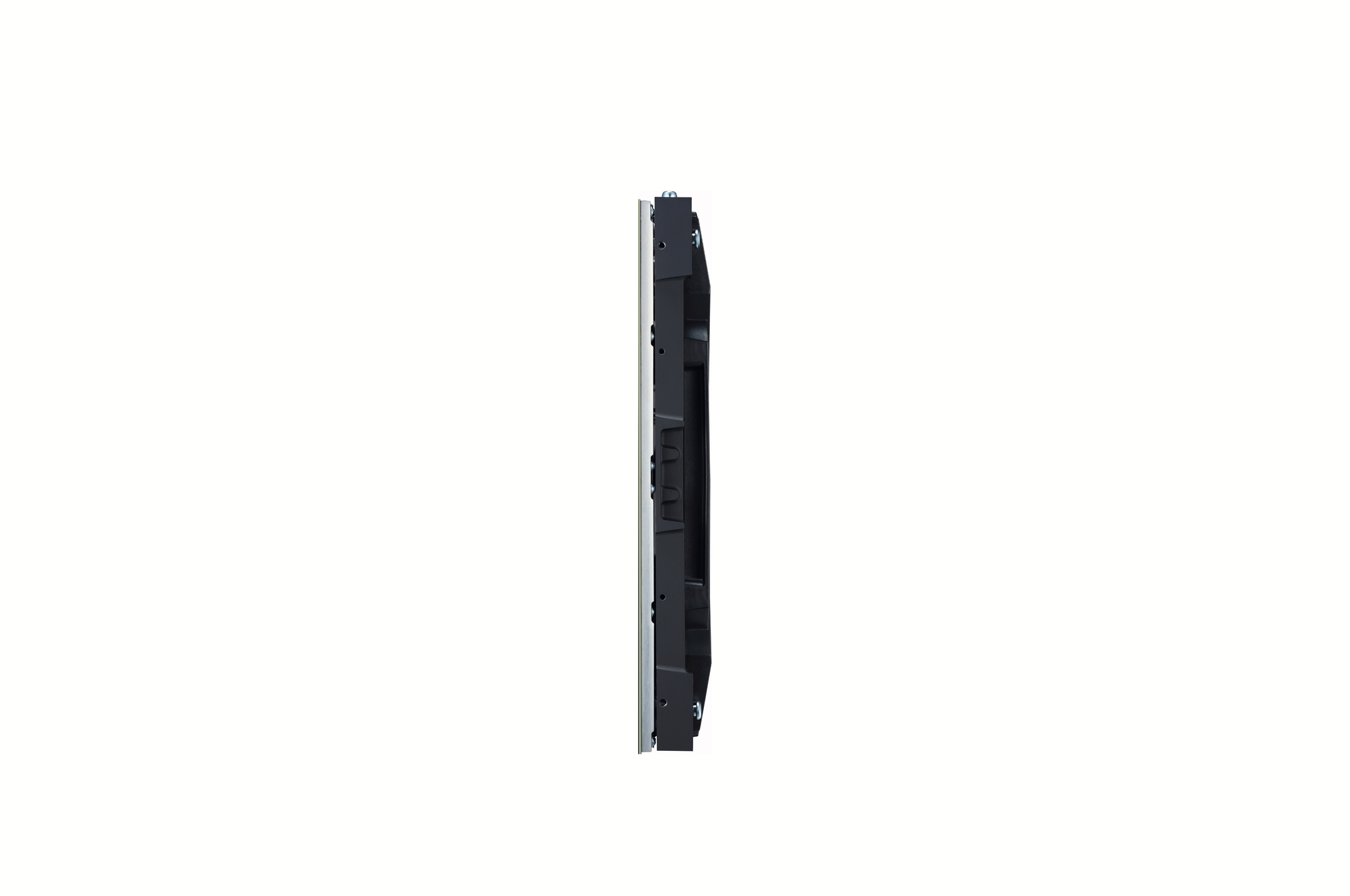

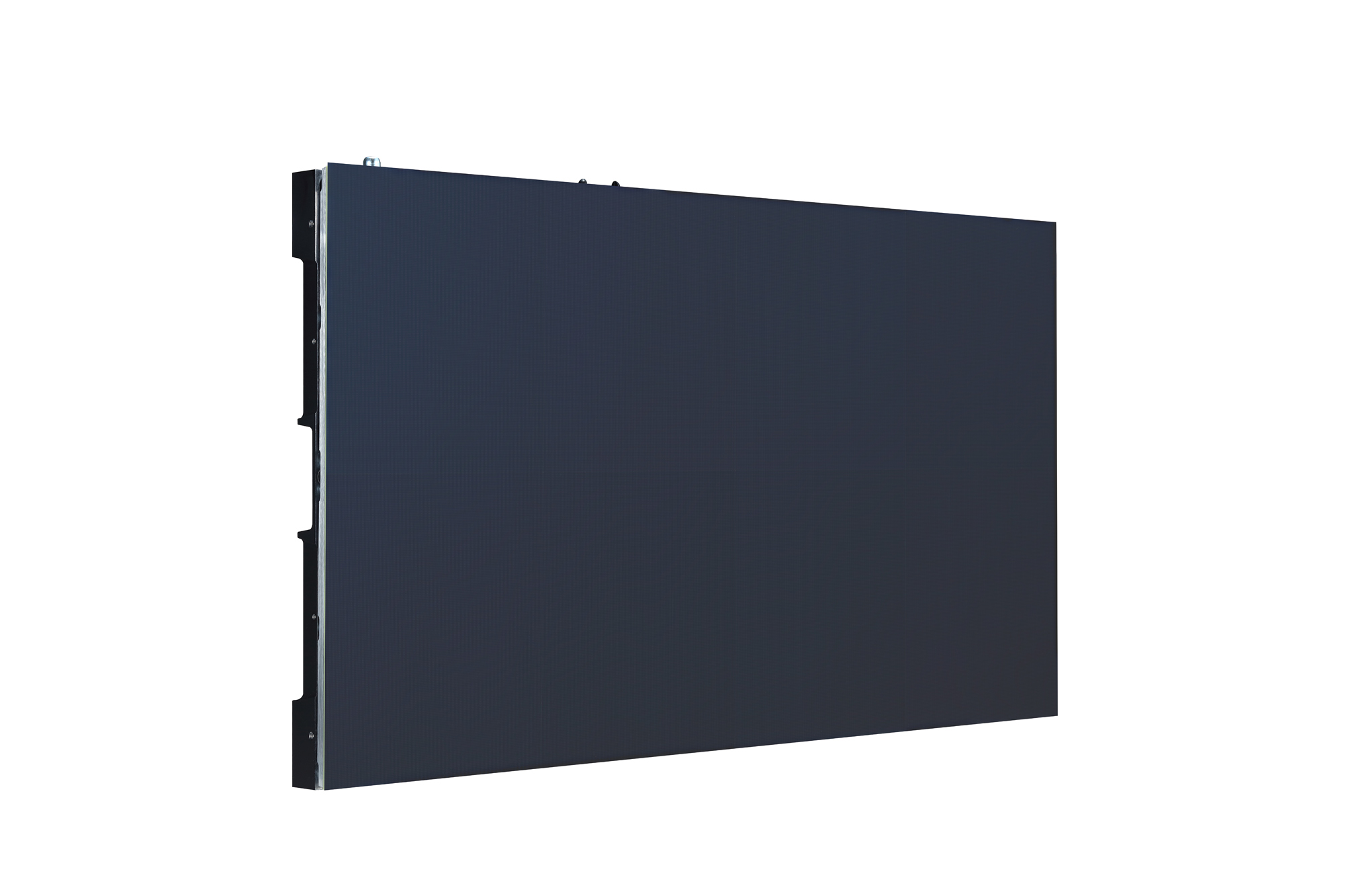

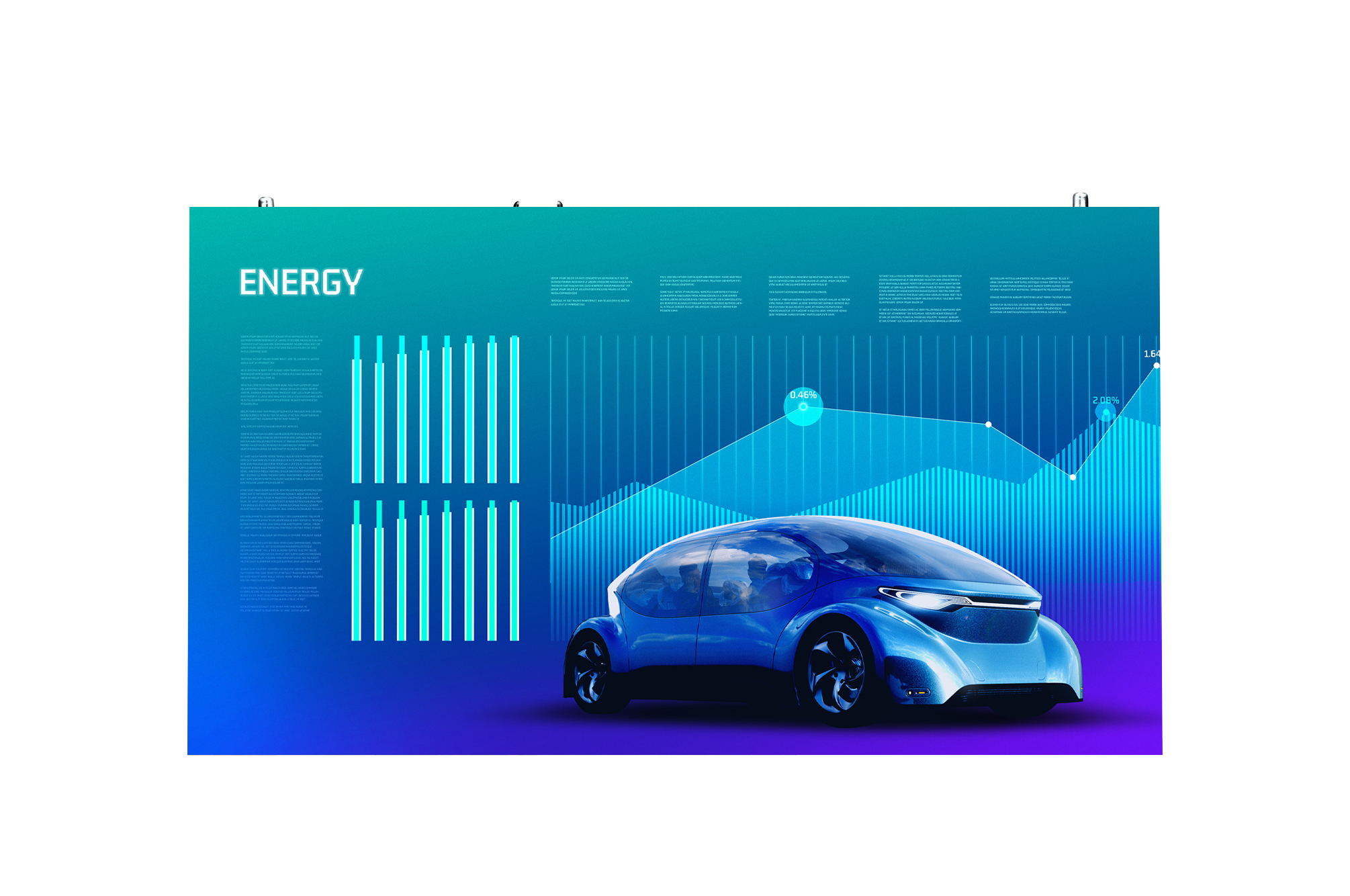

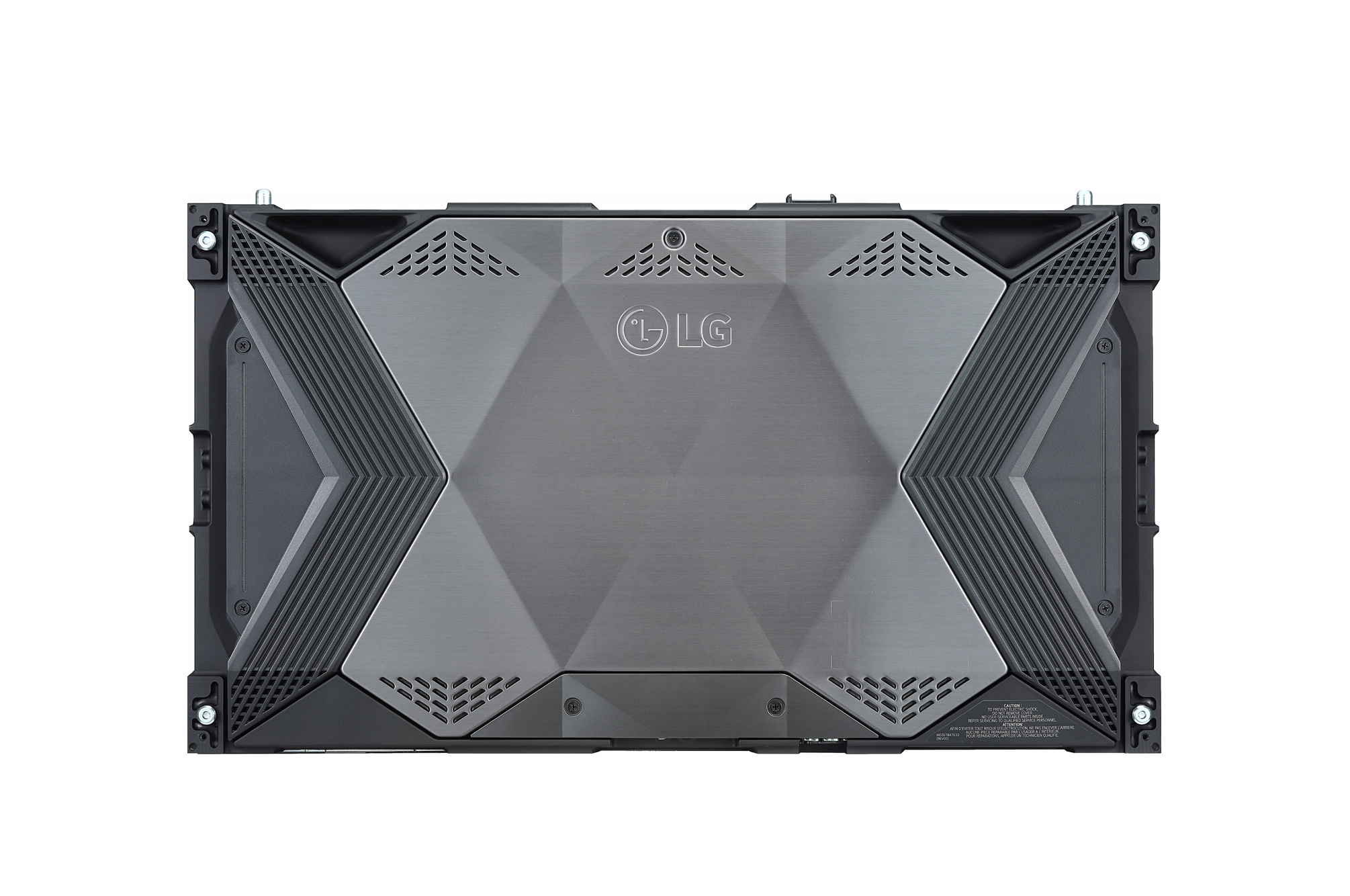

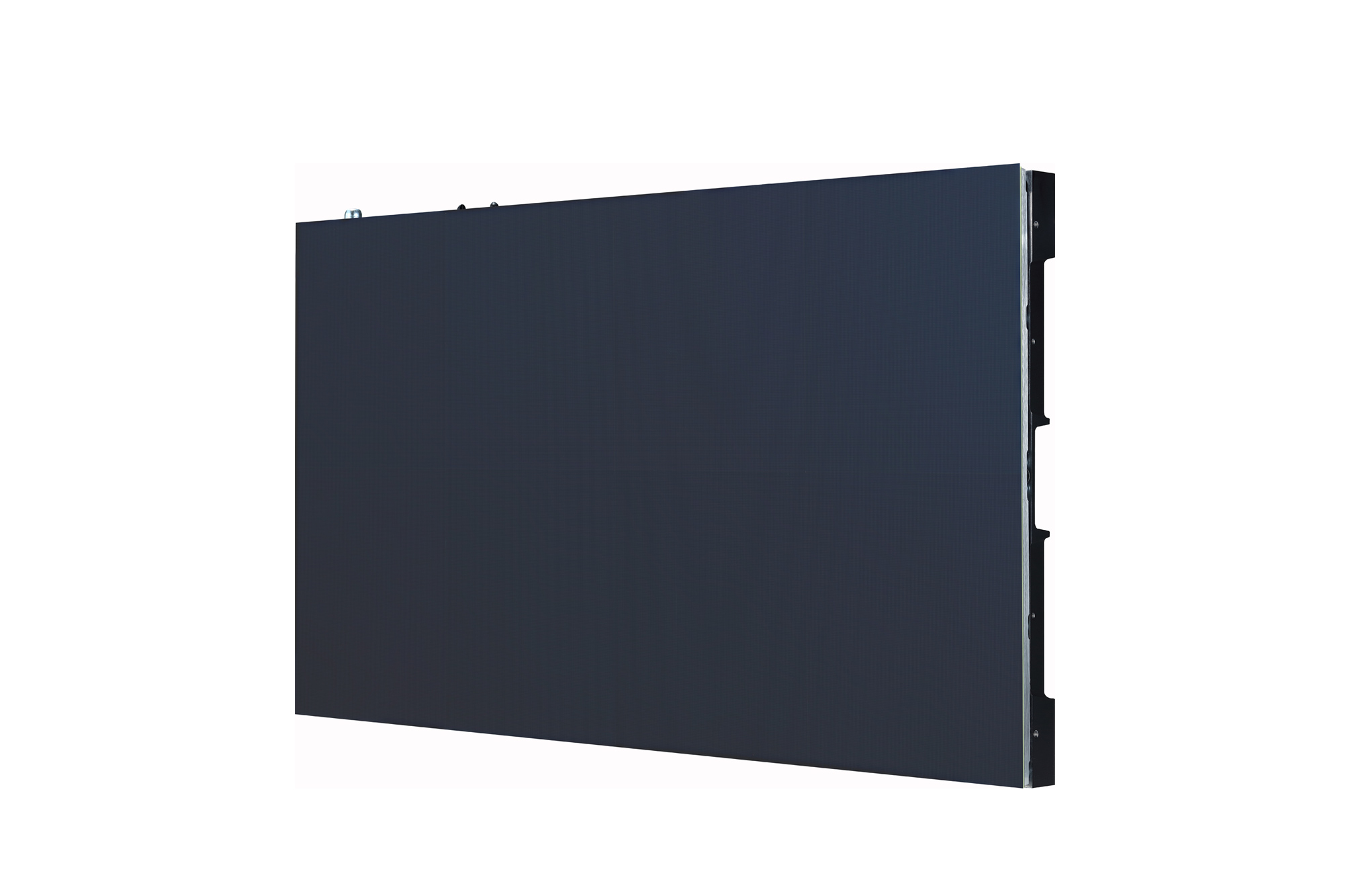

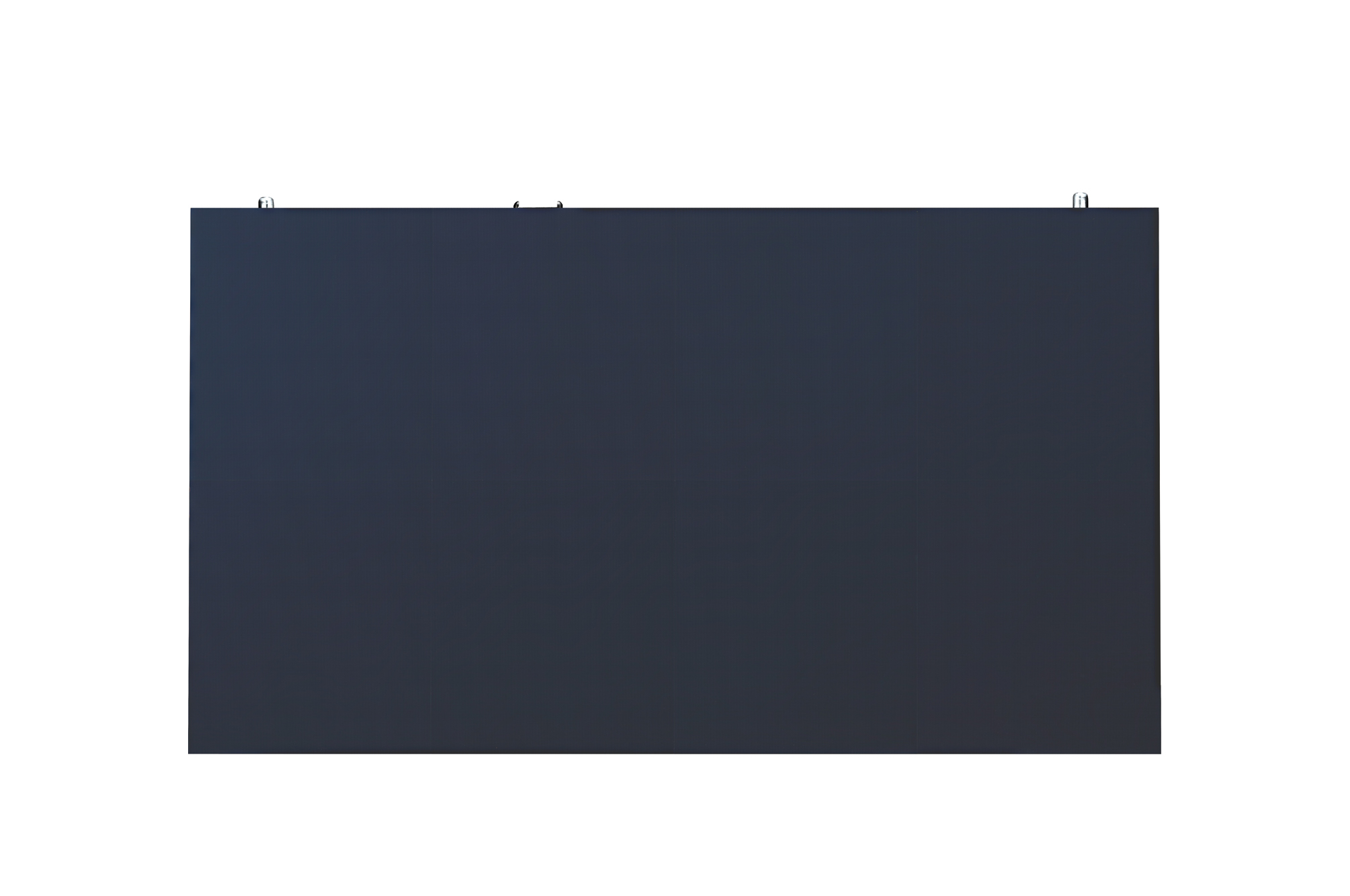

LG LSAP007 Commercial Micro LED

Tech Specifications:

Physical Parameter

• Pixel Pitch (mm) 0.78
• Pixel Configuration Micro
• Module Resolution (W x H) 384 x 144
• Module Dimensions (W x H, mm) 300 x 112.5
• Weight per Module (kg) 0.18
• Cabinet Resolution (W × H) 768 x 432
• Cabinet Dimensions (W × H × D, mm) 600 × 337.5 × 44.9
• No. of Modules per Cabinet (W × H) 2 × 3
• Cabinet Surface Area (m²) 0.2
• Weight per Cabinet (kg/cabinet) 7.8
• Weight per Square Meter (kg/m²) 38.5
• Physical Pixel Density (pixels/m²) 1,638,400
• Flatness of Cabinet ±0.5 mm
• Cabinet Material Die Casting Aluminum
• Service Access Front

Optical Specifications

• Max. Brightness (After Calibration) * 600
• Color Temperature (K) 2,000-10,000 / Default 6,504
• Visual Viewing Angle (Horizontal/Vertical) 150 × 150
• Brightness Uniformity 95%
• Color Uniformity ±0.02 Cx, Cy
• Contrast Ratio (10 lux) 17,000:1 @10lux
• Processing Depth (bit) 22 (Internal Processing (HDR10))

Electrical Specifications

• Power Consumption (W/Cabinet, Max.) 70
• Power Consumption (W/Cabinet, Avg.) 40
• Power Consumption (W/m², Max.) 346
• Heat Dissipation (BTU/h/Cabinet, Max.) 239
• Heat Dissipation (BTU/h/Cabinet, Avg.) 136
• Heat Dissipation (BTU/h/㎡, Max.) 1,179
• Power Supply (V) 100 to 240
• Frame Rate (Hz) 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
• Refresh Rate (Hz) 3,840

Operation Conditions

• Lifetime (Hours to Half Brightness) 100,000
• Operating Temperature (°C) 0 to +40
• Operating Humidity 10-80% RH
• IP rating Front / Rear IP50 / IP20

Certification

• Certification IEC 62368-1, EMC Class A
• Fire Protection BS476 Part7 Class1

Environment

• Environment RoHS/REACH

Controller

• Controller MEGAPIXEL(HELIOS)
• 90 Degree Corner Cut
• 90 Degree Corner Cut No
