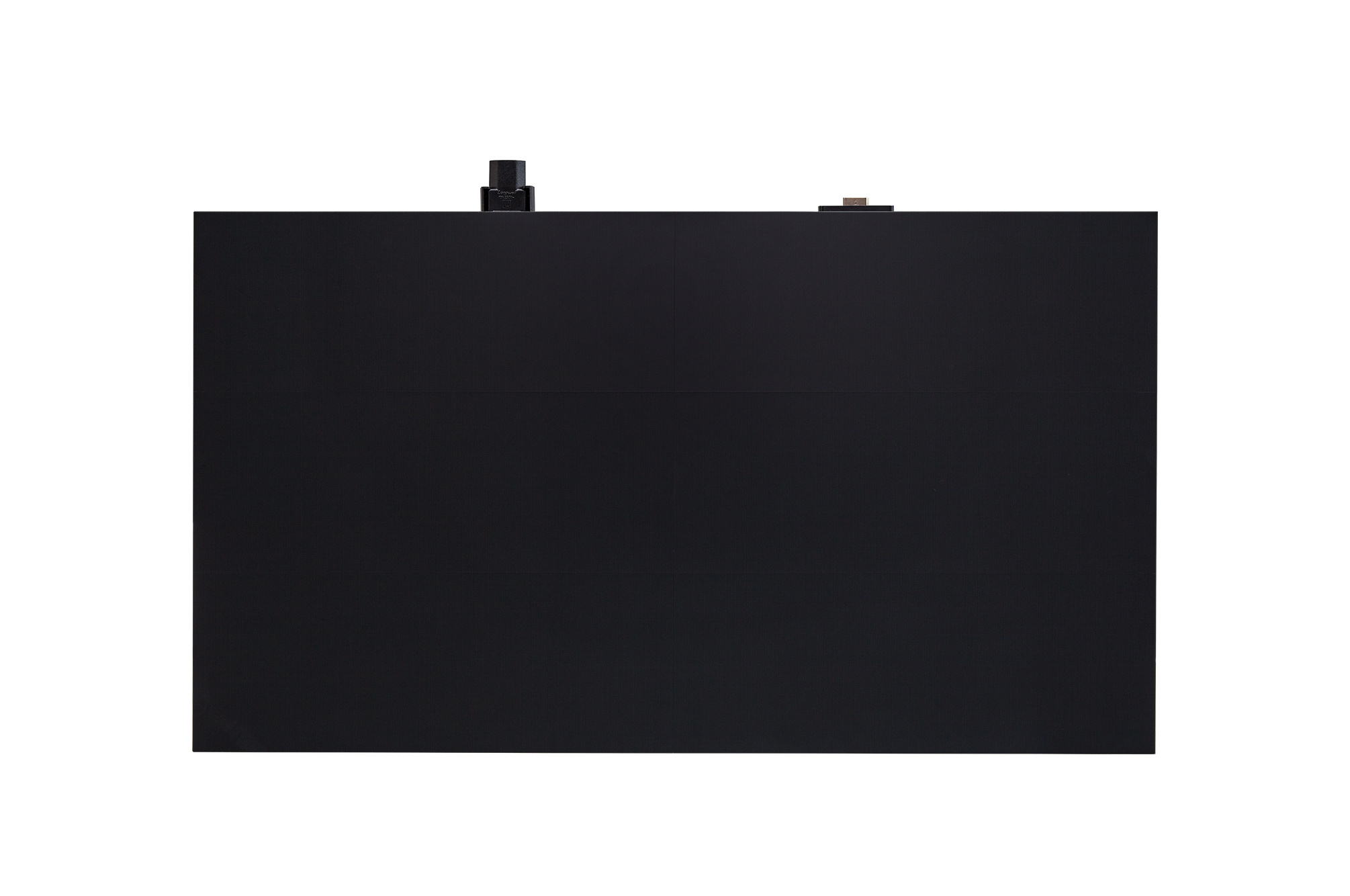

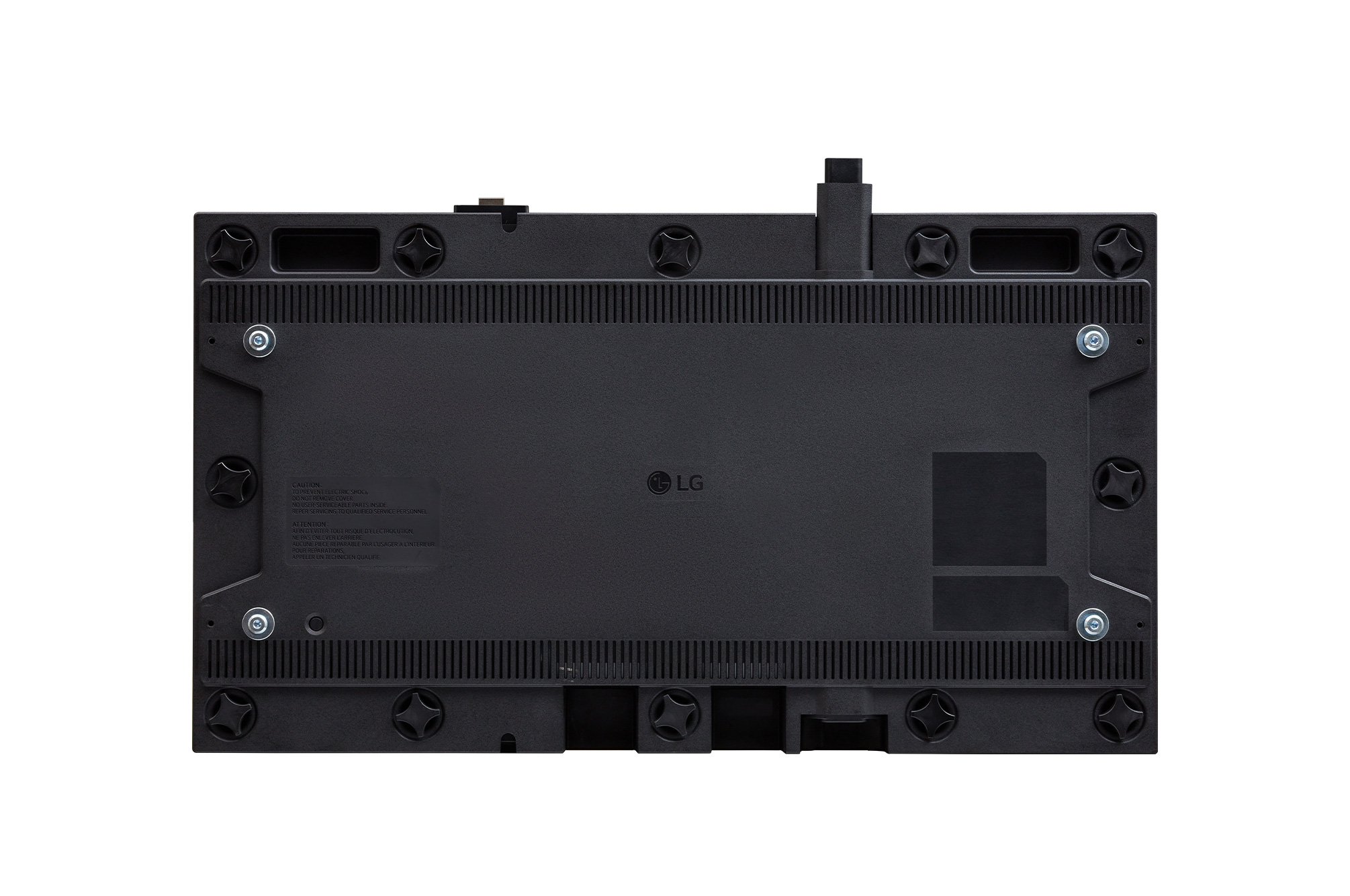

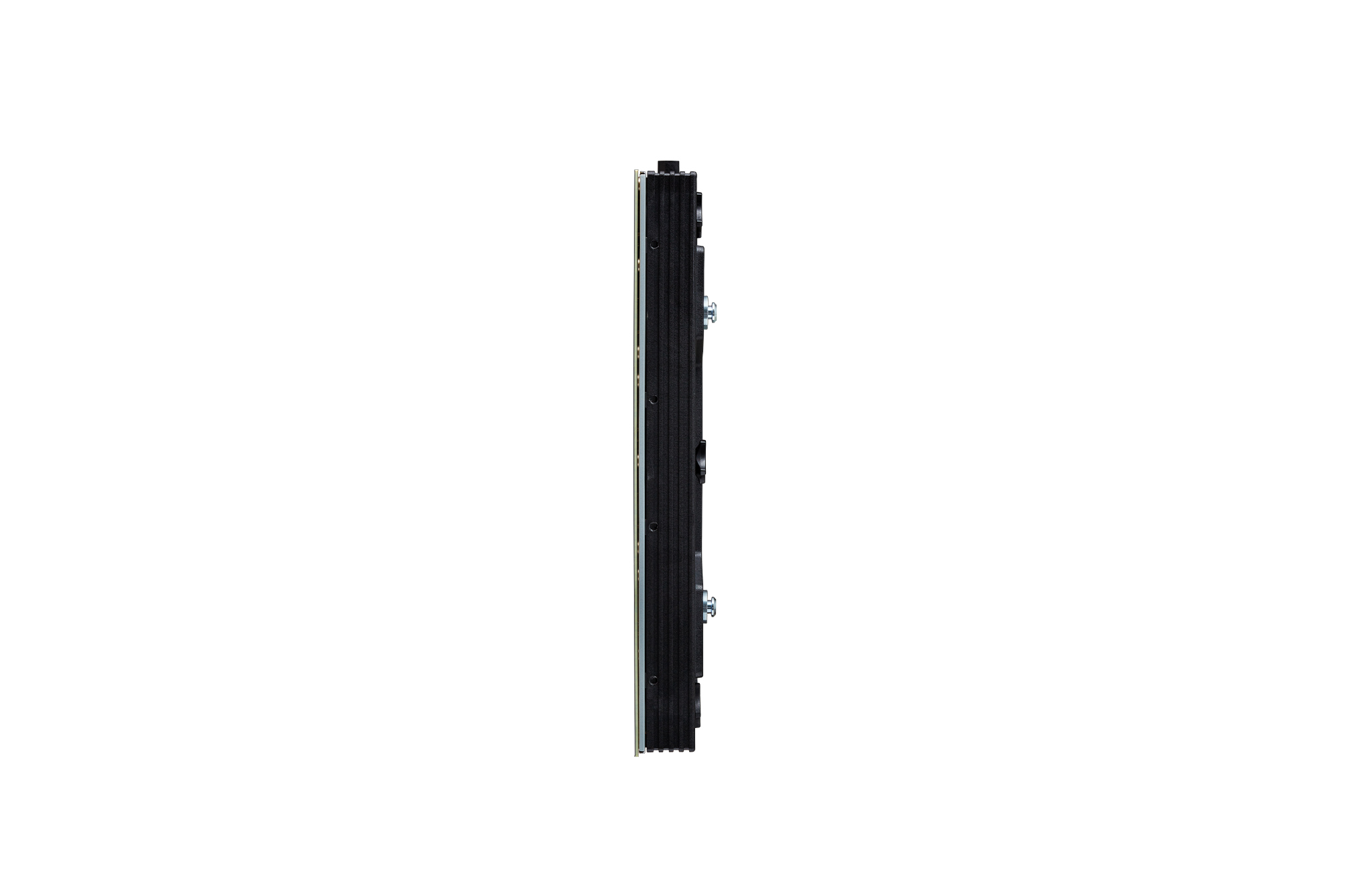

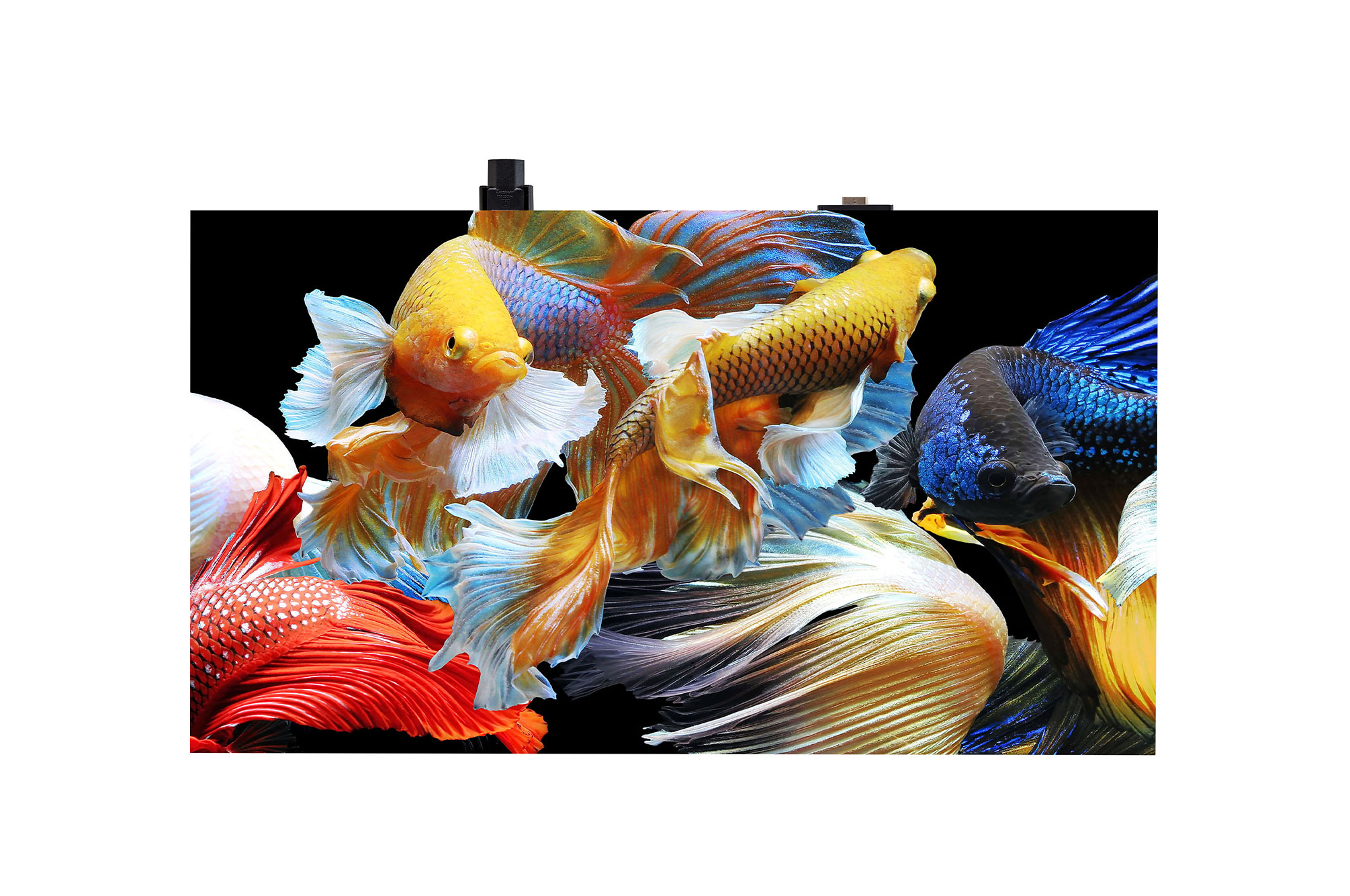

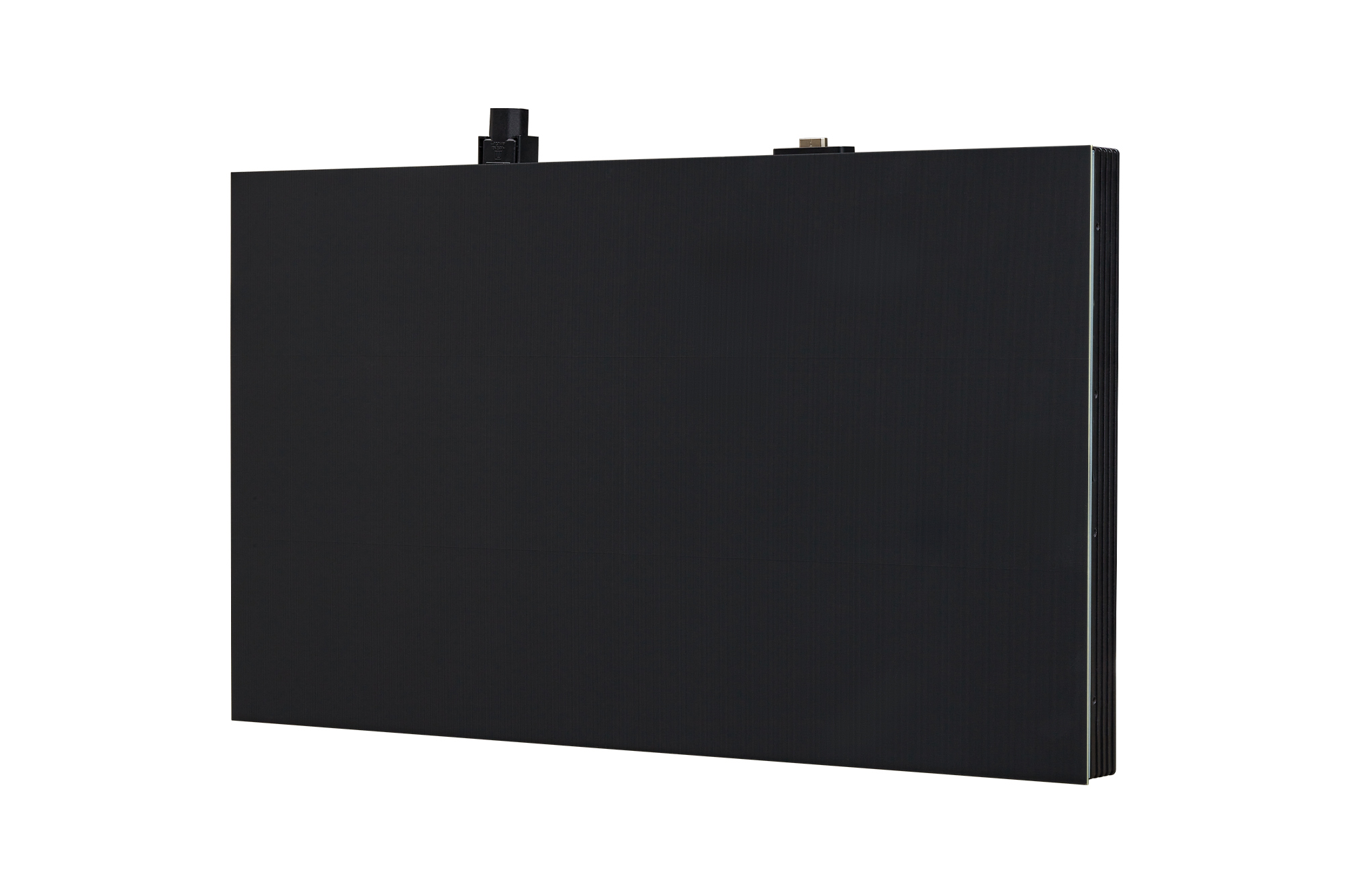

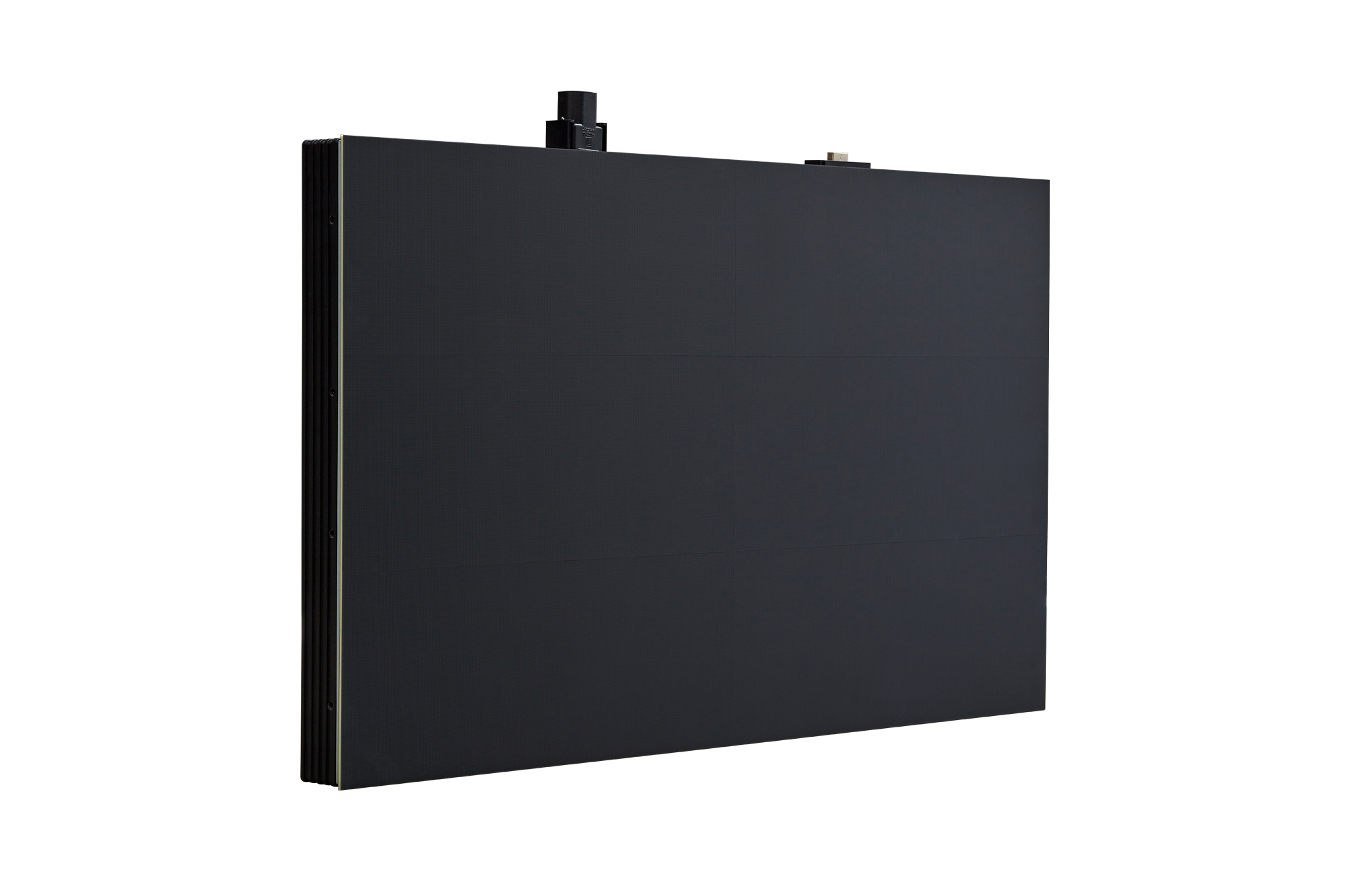

LG LMPA009 Commercial Micro LED

Tech Specification:

Physical Parameter

• Pixel Pitch (mm) 0.93
• Pixel Configuration Micro
• Module Resolution (W x H) 320 × 120
• Module Dimensions (W x H, mm) 300 × 112.5
• Weight per Module (kg) 0.19
• Cabinet Resolution (W × H) 640 × 360
• Cabinet Dimensions (W × H × D, mm) 600 × 337.5 × 39.8
• No. of Modules per Cabinet (W × H) 2 × 3
• Cabinet Surface Area (m²) 0.2
• Weight per Cabinet (kg / unit) 5.4
• Weight per Square Meter (kg/m²) 26.7
• Physical Pixel Density (pixels/m²) 1,137,778
• Flatness of Cabinet ±0.5 mm
• Cabinet Material Mold / PC+ABS-GF20%
• Service Access Front

Optical Specifications

• Brightness (After Calibration) Typ. 600 / Peak 1,500
• Color Temperature (K) 3,200~9,300 / Default 7,300
• Visual Viewing Angle (Horizontal/Vertical) 160 × 160
• Brightness Uniformity 0.95
• Color Uniformity ±0.02Cx,Cy
• Contrast Ratio (10 lux) 40,000:1 @10lux (TBD)
• Processing Depth (bit) 20 (HDR10, HDR10 Pro)

Electrical Specifications

• Power Consumption (W/Cabinet, Max.) 63 (TBD)
• Power Consumption (W/Cabinet, Avg.) 32 (TBD)
• Power Consumption (W/m², Max.) 311 (TBD)
• Heat Dissipation (BTU/h/Cabinet, Max.) 215 (TBD)
• Heat Dissipation (BTU/h/Cabinet, Avg.) 109 (TBD)
• Heat Dissipation (BTU/h/㎡, Max.) 1,061 (TBD)
• Power Supply (V) 100 to 240
• Frame Rate (Hz) 50 / 60
• Refresh Rate (Hz) 7,680 (V)

Operation Conditions

• Lifetime (Hours to Half Brightness) 100,000
• Operating Temperature (°C) 0 to +40
• Operating Humidity 10-80% RH
• IP rating Front / Rear IP50 / IP20

Standard

• Certification Safety 60950-1, EMC Class B
• Fire Protection BS476 Part7 Class1

Environment

• Environment RoHS

Controller

• Controller CEAA, CEAB / SBAA-D05
• 90 Degree Corner Cut No
