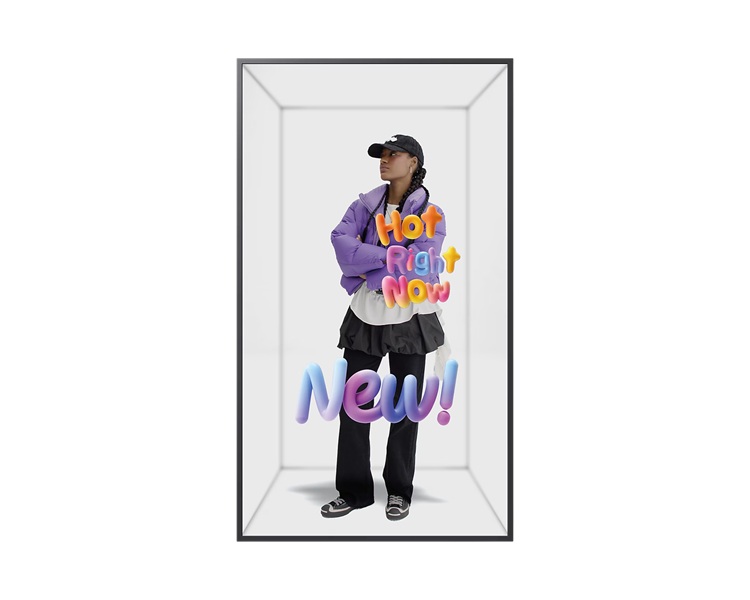

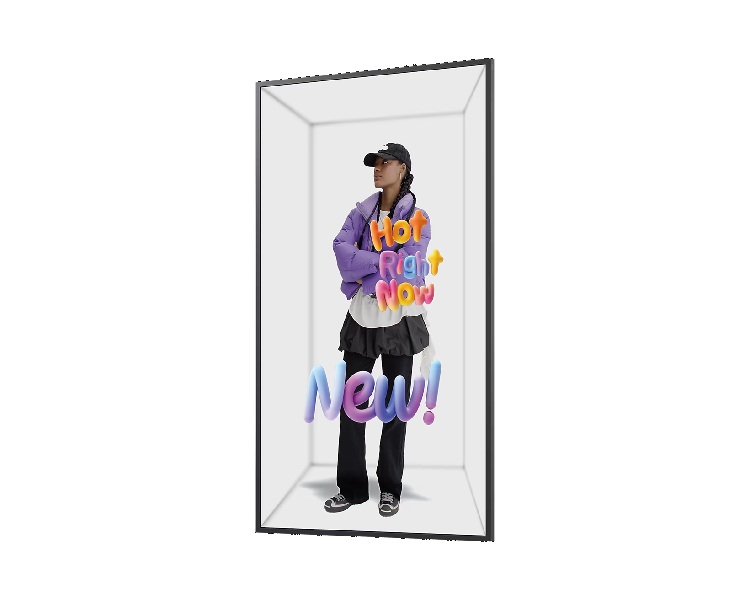

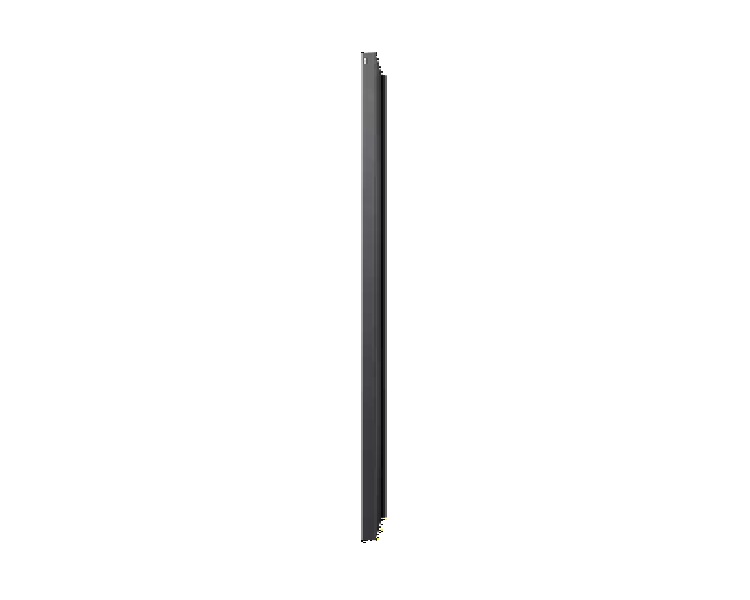

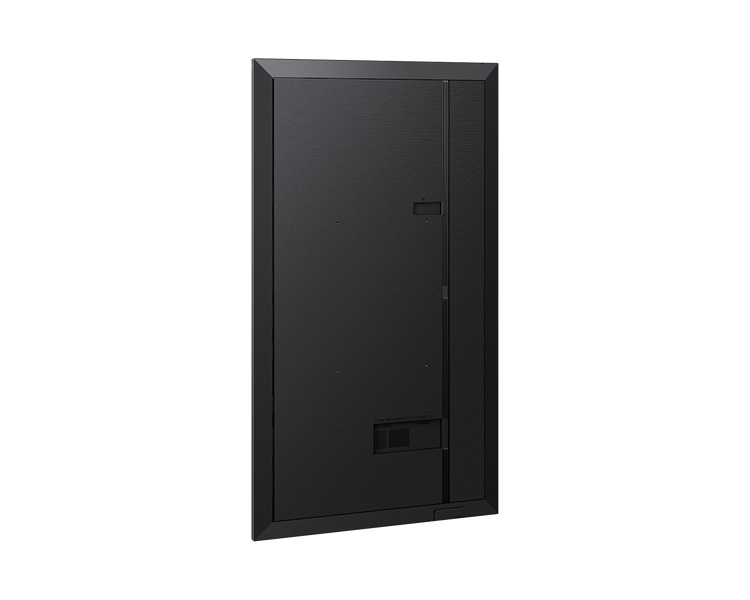

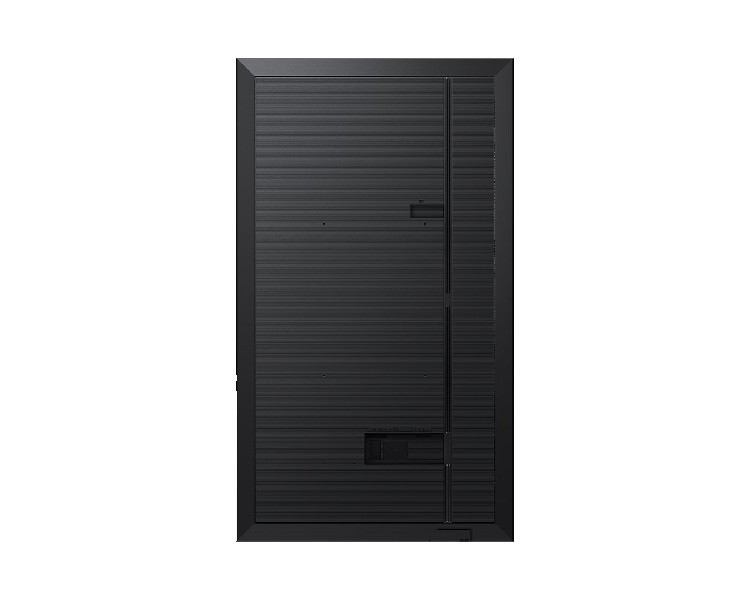

Samsung SMHX-P 2.16 m (85″) Spatial Signage

Display:

• Diagonal Size 2.16 m
• Panel Type VA
• Resolution 3,840 x 2,160
• Pixel Pitch (HxV) 0.48 x 0.48 mm
• Brightness (Typ) 500 nit
• Contrast Ratio 4,000:1
• Viewing Angle (H/V) 178/178
• Response Time 10ms
• Colour Gamut 72% (NTSC)
• Glass Haze 25%
• H-Scanning Frequency 30 – 81 kHz
• Maximum Pixel Frequency 594 MHz
• V-Scanning Frequency 48 – 75 Hz
• Contrast Ratio (Dynamic) Mega
• Operation Time Support 24/7

Connectivity:

• HDMI In 3
• DP In 1
• Version of HDMI 2
• Version of DP 1.2
• Version of HDCP 2.2
• USB 2
• IR In Yes
• Audio In No
• Audio Out Stereo Mini Jack
• RS232 In Yes
• RS232 Out Yes
• RJ45 In Yes
• WiFi Yes
• Bluetooth Yes

Power:

• Power Supply AC100-240V 50/60Hz
• Power Consumption (On Mode) 484 W
• Power Consumption (Sleep Mode) 0.5 W

Dimension:

• Set Dimension (WxHxD) 1.10 m x 1.92 m x 5.20 cm
• Package Dimension (WxHxD) 2.09 m x 1.23 m x 22.00 cm

Product Weight:

• Set Weight 49.0 kg
• Package Weight 61.9 kg

Operation Conditions:

• Temperature 0 ~ 40 ℃
• Humidity 10 ~ 80 (Non-Condensing)

Mechanical Specification:

• VESA Mount 40.00 cm x 60.00 cm
• Bezel Width 21.0
• Bezel Colour BLACK
• Frame Material Non-Glossy

SoC:

• OS Version Tizen 7.0
• Flash Memory Size 16GB
