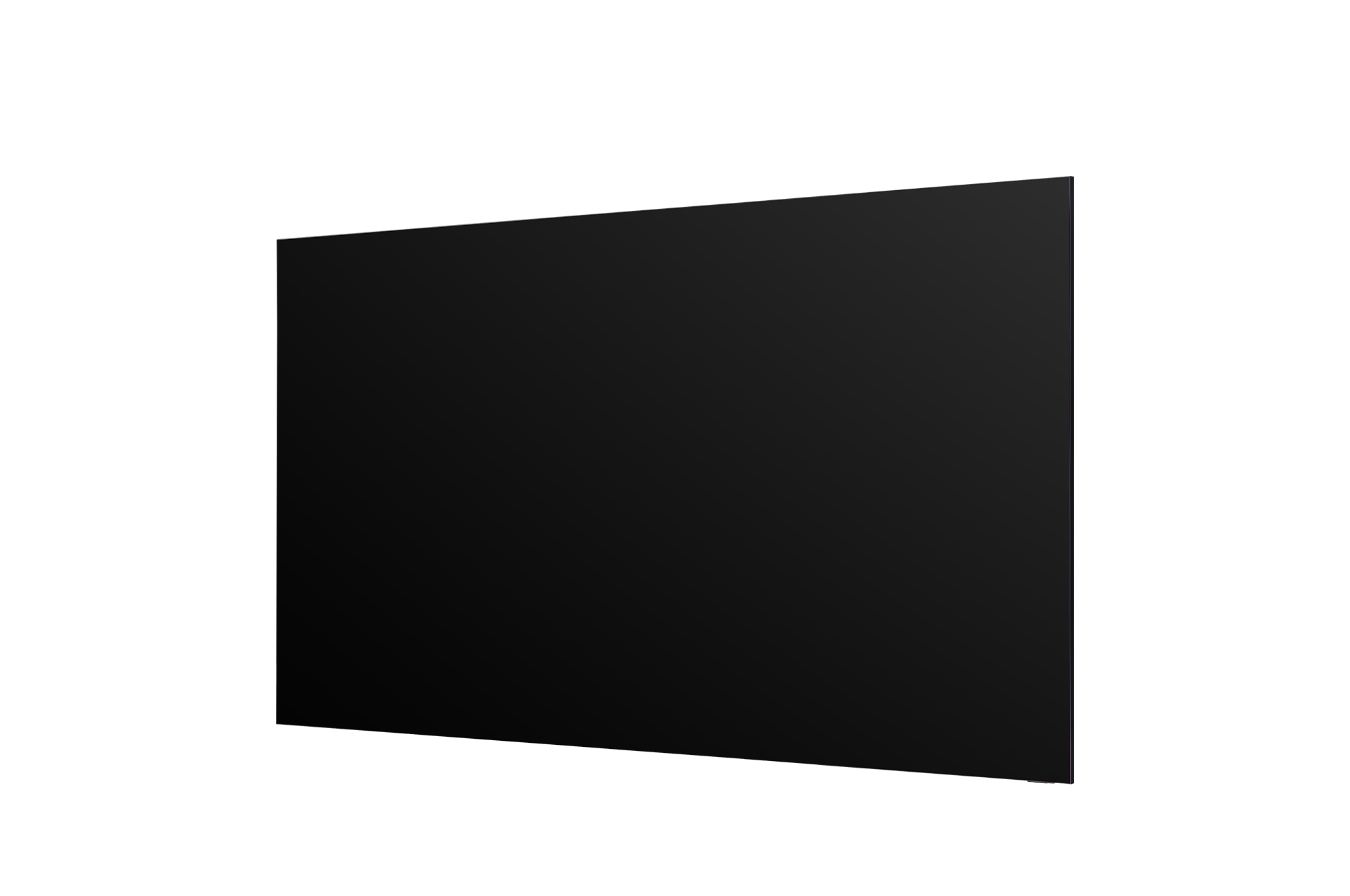

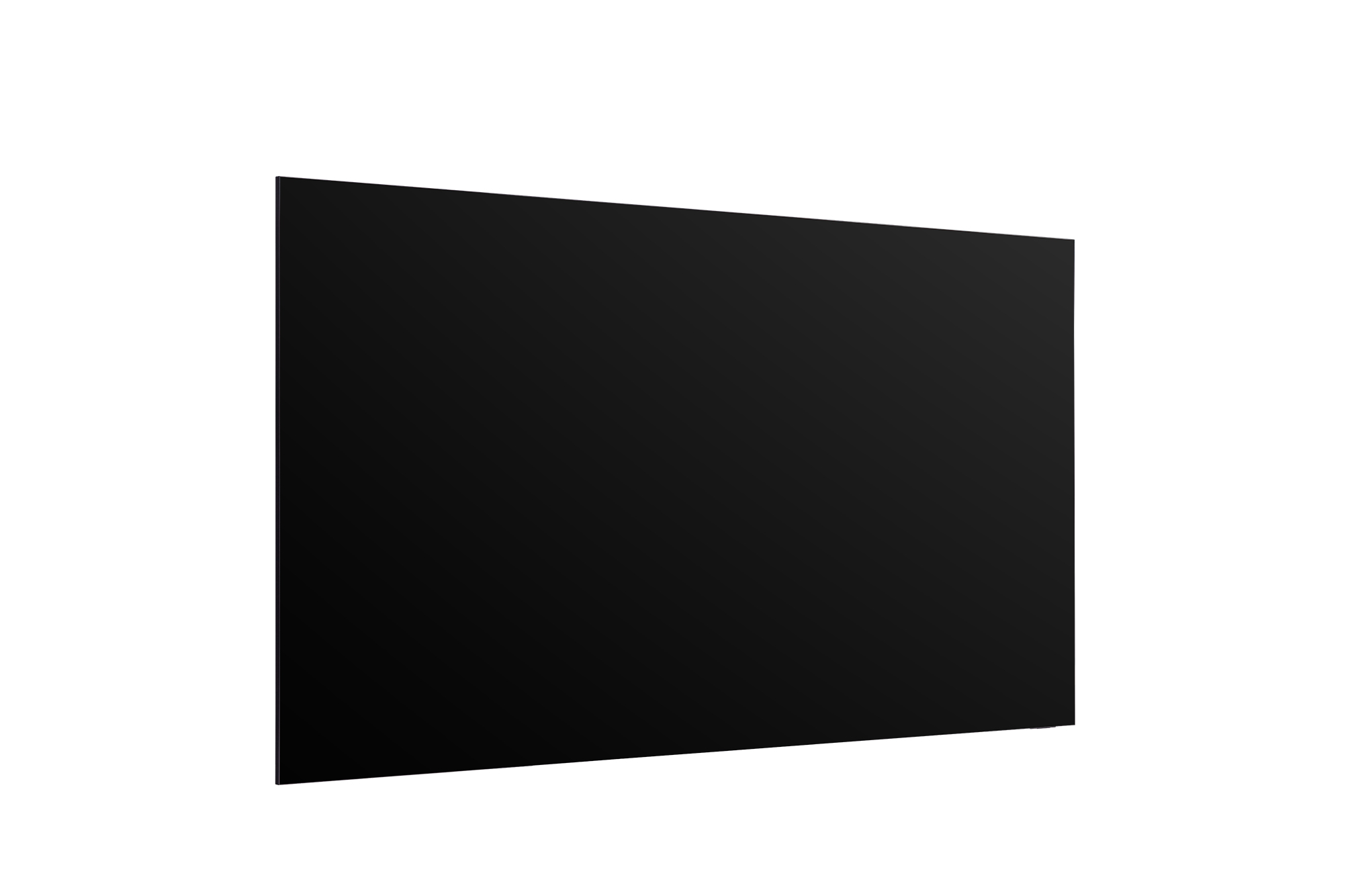

LG LSAH007 MAGNIT Active Micro LED

Tech Specifications:

Physical Parameter

• Pitch Name AM Micro
• Pixel Pitch (mm) 0.78
• Module Resolution (W x H) 480 × 540
• Module Dimensions (W x H, mm) 375.76 × 422.74 mm
• Screen Resolution (WxH) 3,840 × 2,160
• Screen Dimension (W × H × D, mm, including bezel) 3,010.6 x 1,695.2 x 37.5 mm
• Screen Weight (kg) 175 kg
• No. of Modules per Screen (W x H) 8 × 4
• Screen Surface Area (㎡) 5.06
• Physical Pixel Density (pixels/m²) 1,638,400
• Flatness of Unit Case (mm) ±0.5
• Cabinet Material Die-casting Aluminum
• Service Access Front

Optical Specifications

• Max. Brightness (After Calibration) * 300 / 1,700 (Peak)
• Color Temperature (K) 4,800~13,000 / Default 13,000
• Visual Viewing Angle (Horizontal/Vertical) 170 × 170
• Contrast Ratio (10 lux) 1,000,000 : 1
• Processing Depth (bit) Internal 20 (HDR10, HDR10 Pro)
• Brightness Uniformity 0.95
• Color Uniformity ±0.015Cx,Cy

Electrical Specifications

• Power Consumption (W/Screen, Max.) 1,800
• Power Consumption (W/Screen, Avg.) 650
• Power Consumption (W/m², Max.) 355
• Heat Dissipation (BTU/h/Screen, Max.) 6,142.00
• Heat Dissipation (BTU/h/Screen, Avg.) 2,218
• Heat Dissipation (BTU/h/㎡, Max.) 1,211
• Power Supply (V) 100 to 240
• Frame Rate (Hz) 48 / 144

Operation Conditions

• Lifetime (Hours to Half Brightness) 100,000
• Operating Temperature (°C) 0 to +40
• Operating Humidity 10-80% RH
• IP rating Front / Rear IP50 / IP20

Sound

• Speaker 100W(50W+50W)

Certification

• Certification CE,FCC,ETL,CB, EMC Class B

Environment

• Environment RoHS, REACH

Controller

• Controller Embedded(webOS)

I/O port

• I/O port IR Blaster, Anetenna/Cable In, RS-232C (SVC Only), Optical Digital Audio Oout, LAN, HDMI (4), USB (2) BS476 Part7 Class2
