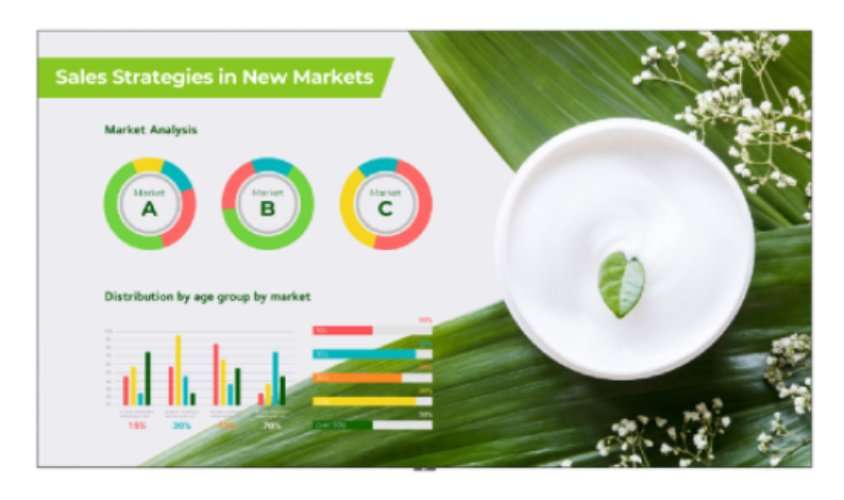

LG LAPA163-GF 163″ All-in-One LED Indoor LED Signage

Key Feature

• Screen Size : 163″
• Pixel Pitch : 1.88 mm
• Brightness : 500 nit (Max., after calibration)
• Screen Resolution : 1,920 × 1,080

Tech Spec
Physical Parameter

• Pixel Pitch (mm)    1.88
• Module Resolution (W x H)    160 × 90
• Module Dimensions (W x H, mm)    300 × 168.75
• Screen Resolution (WxH)    1,920 × 1,080
• Screen Dimension (W x H x D,mm)    3,605 × 2,030 × 29.95 (Thickest 59.5)
• Screen Weight (kg)    155
• No. of Modules per Screen (W x H)    12 × 12 (Total 144)
• Screen Surface Area (㎡)    7.29
• Physical Pixel Density (pixels/m²)    284,444
• Flatness of Cabinet    ±0.15 (TBD)
• Cabinet Material    Aluminum
• Service Access    Front

Optical Specifications

• Brightness (After Calibration)    500 (Typ.)
• Color Temperature (K)    3,200-9,300
• Visual Viewing Angle (Horizontal/Vertical)    150 / 150
• Brightness Uniformity    98%
• Color Uniformity    ±0.015 Cx, Cy
• Contrast Ratio    3,000 : 1
• Processing Depth (bit)    16
