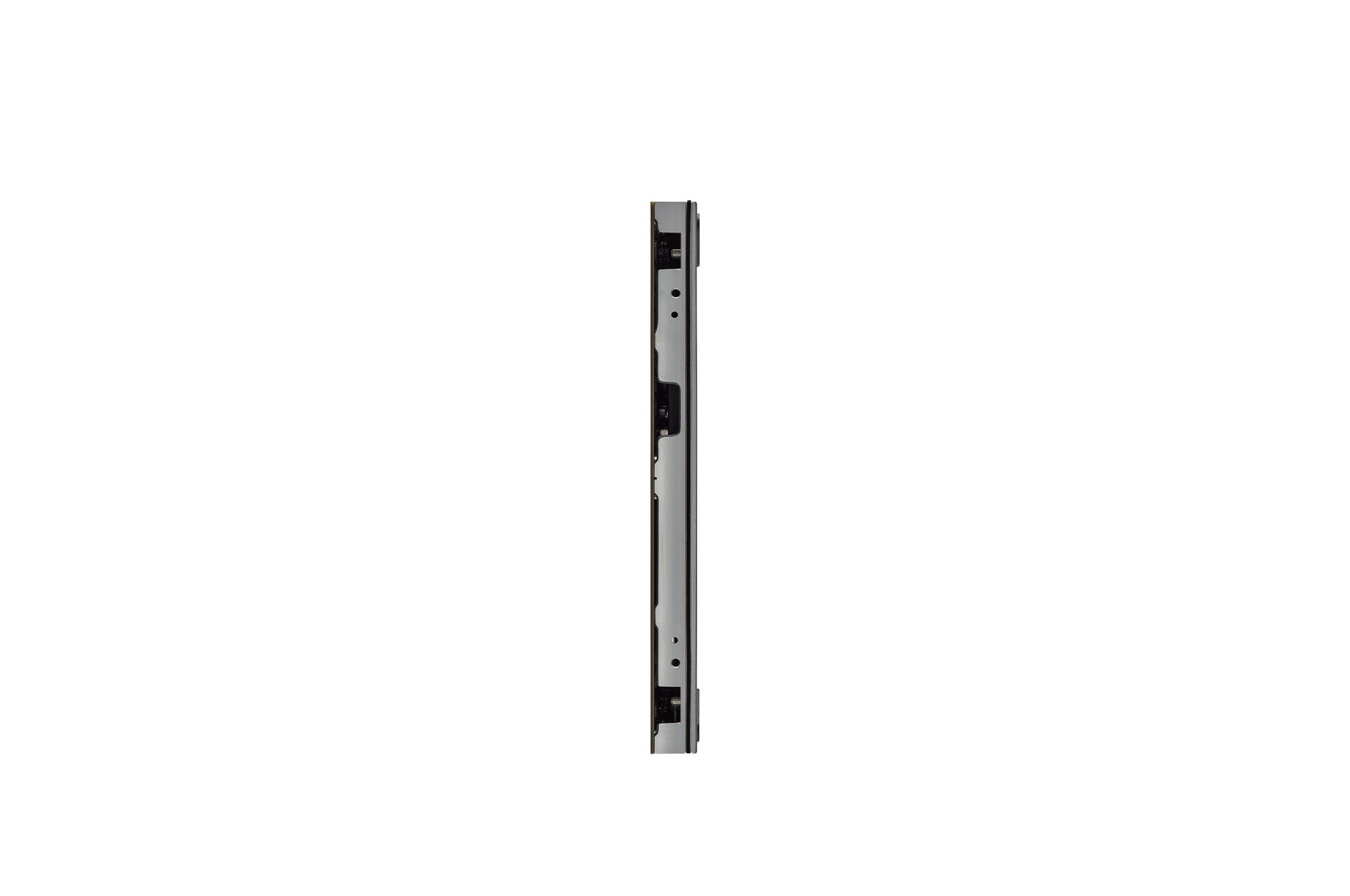

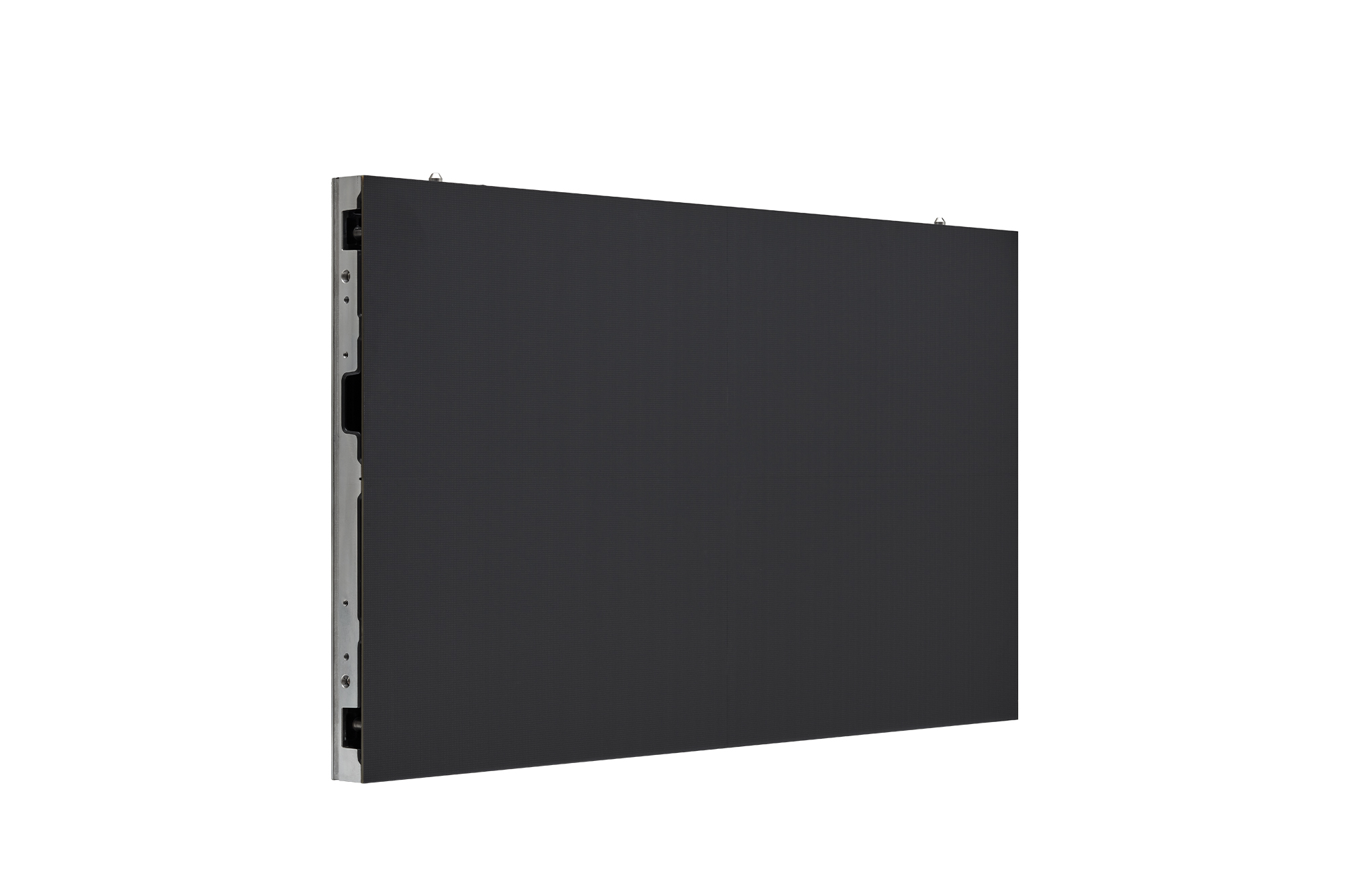

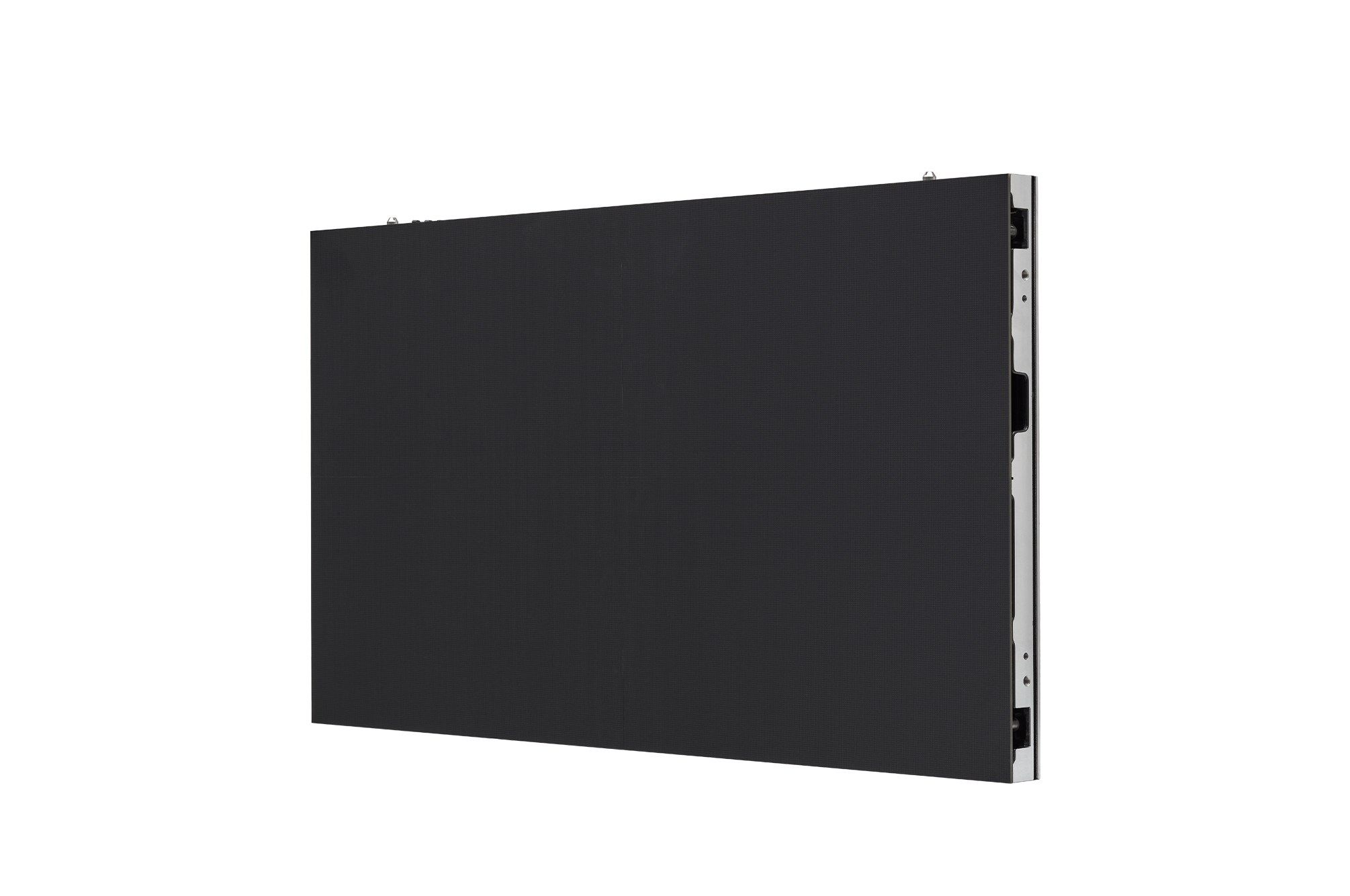

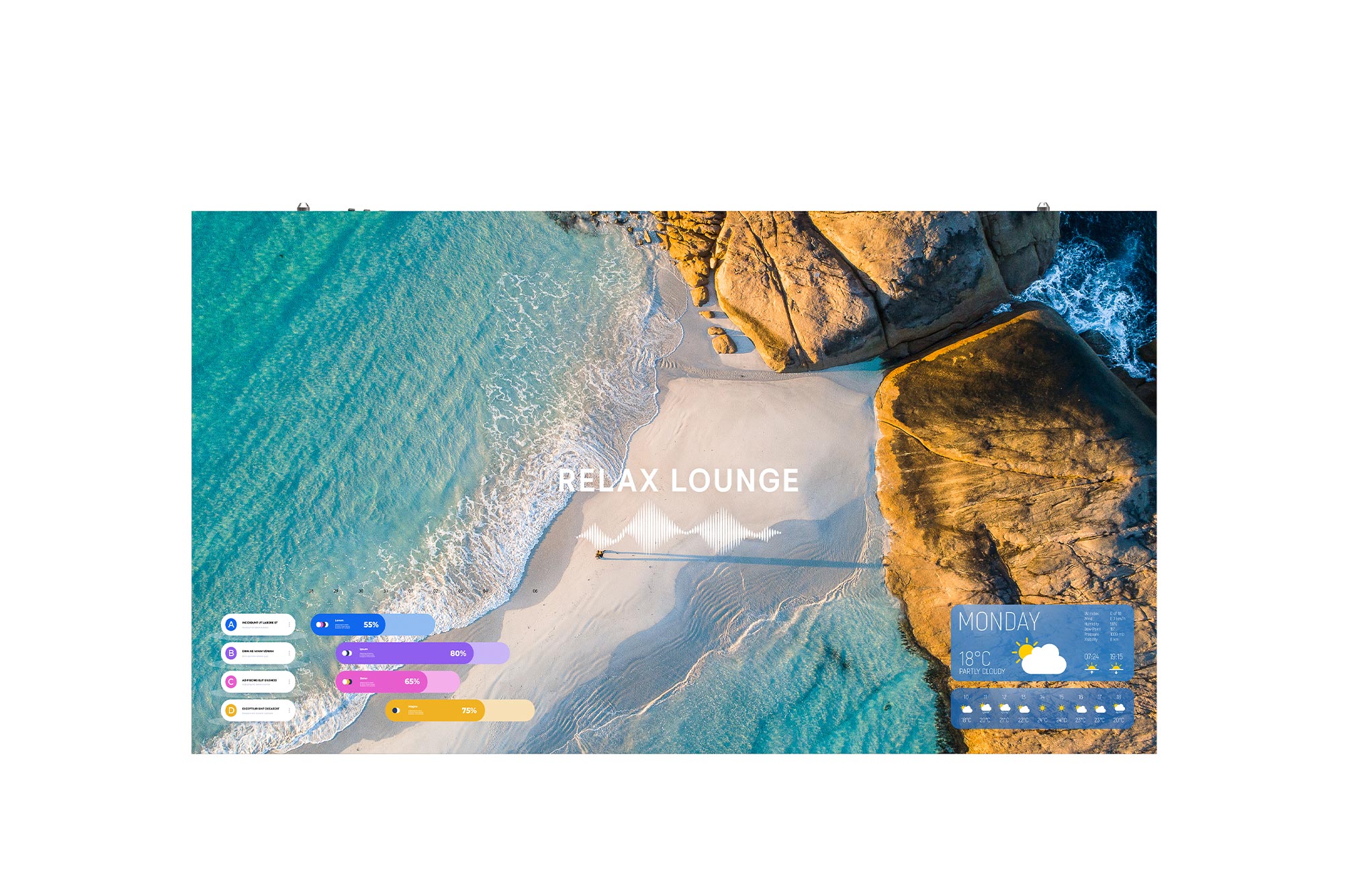

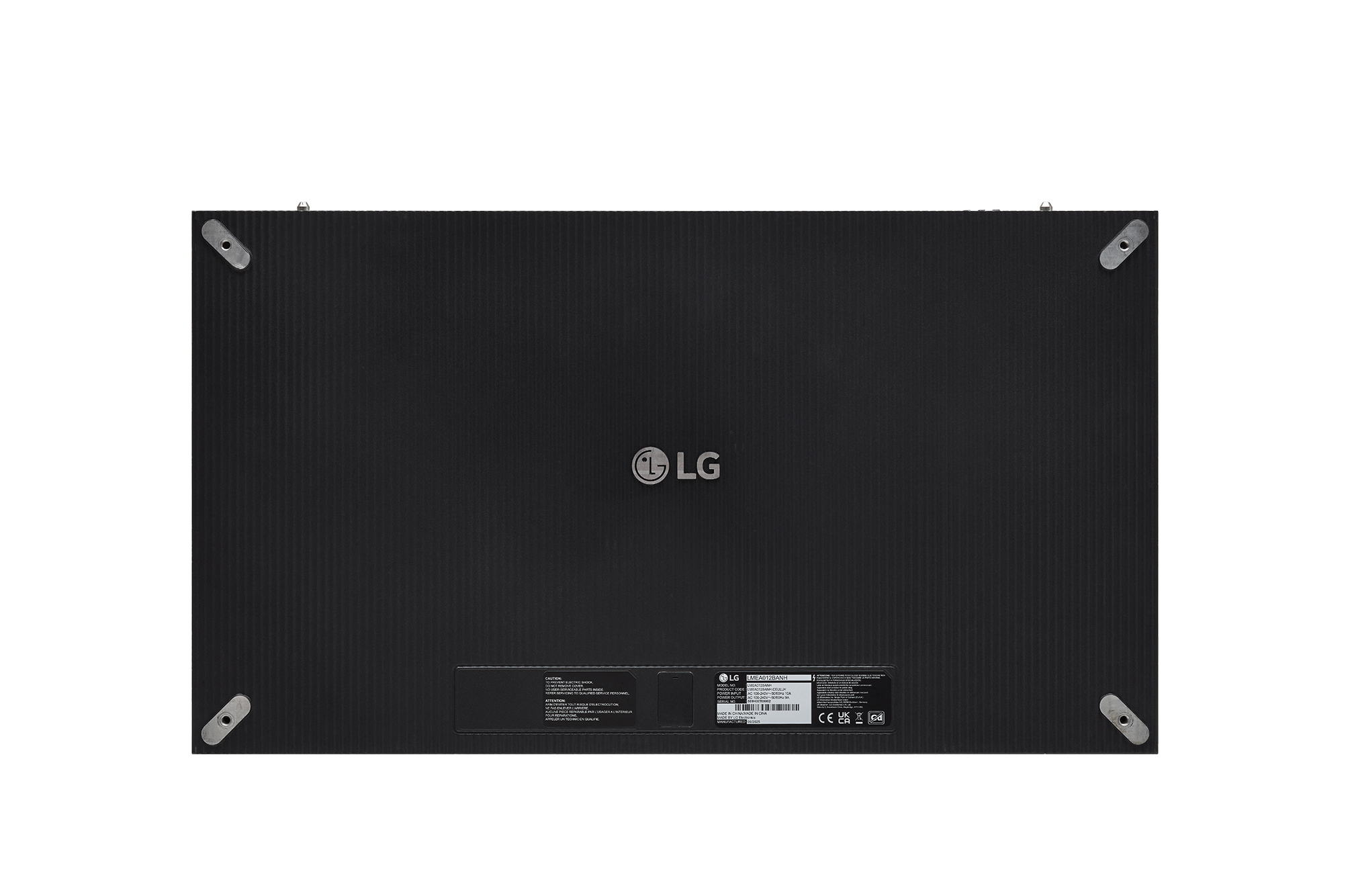

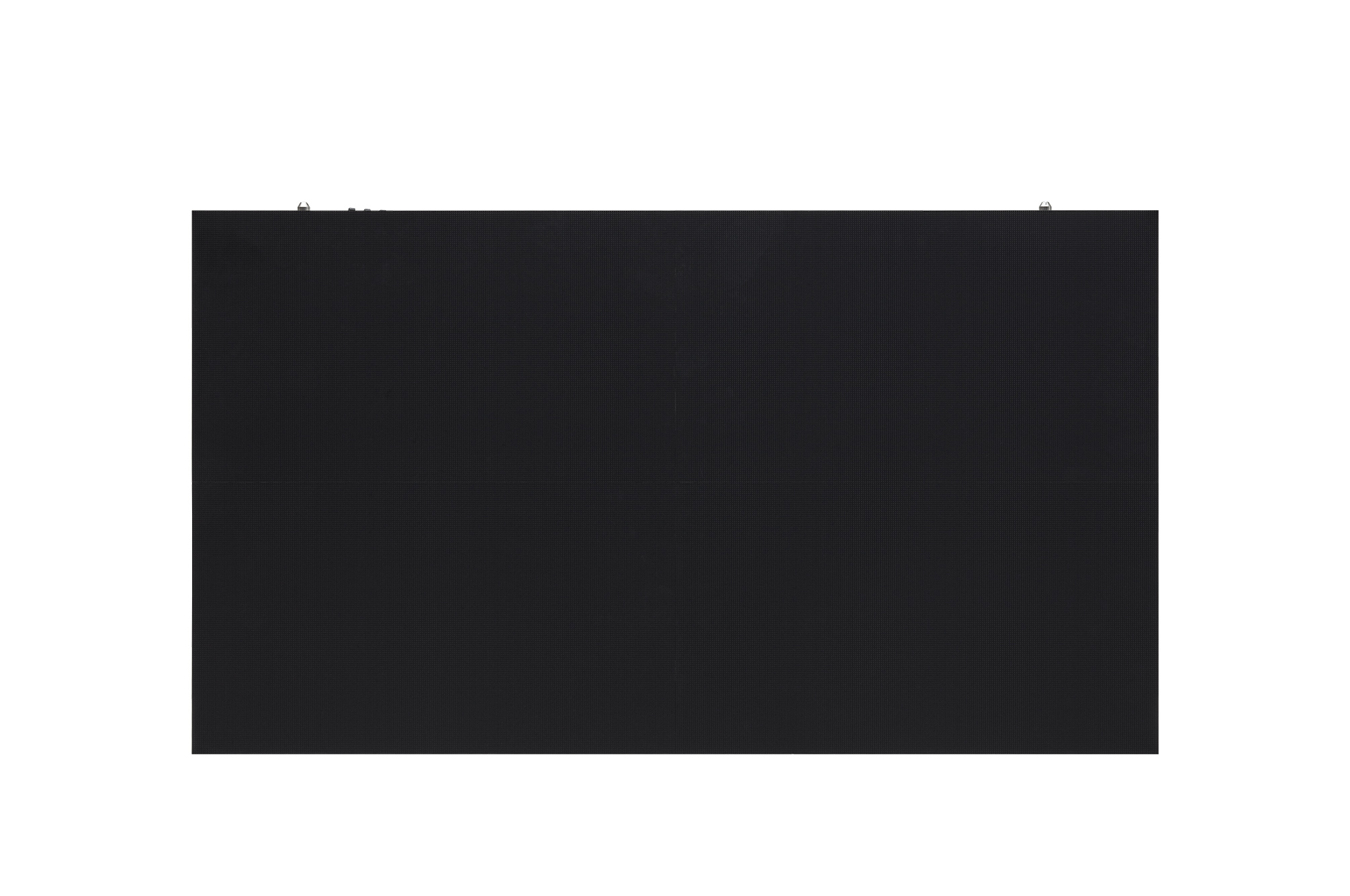

LG LMEA012 Indoor LED

Tech Specifications:

Physical Parameter:

• Pixel Pitch (mm) 1.25
• Pixel Configuration Micro
• Module Resolution (W x H) 240 × 135
• Module Dimensions (W x H, mm) 300 × 168.75
• Weight per Module (kg) 0.27
• Cabinet Resolution (W × H) 480 × 270
• Cabinet Dimensions (W × H × D, mm) 600 × 337.5 × 30 (35, including rear wall-mount pin)
• No. of Modules per Cabinet (W × H) 2 × 2
• Cabinet Surface Area (m²) 0.2
• Weight per Cabinet (kg/cabinet) 3.9
• Weight per Square Meter (kg/m²) 19.26
• Physical Pixel Density (pixels/m²) 640,000
• Flatness of Cabinet ±0.2 mm
• Cabinet Material Die-casting Aluminum
• Service Access Front

Optical Specifications:

• Brightness (After Calibration) 600
• Color Temperature (K) 3,200-9,300 / 6,500 (Default)
• Visual Viewing Angle (Horizontal/Vertical) 160 ±10 × 160 ±10
• Brightness Uniformity 97%
• Color Uniformity ±0.003 Cx,Cy
• Contrast Ratio (10 lux) 20,000 : 1
• Processing Depth (bit) 22

Electrical Specifications:

• Power Consumption (W/Cabinet, Max.) ≤ 55
• Power Consumption (W/Cabinet, Avg.) ≤ 18
• Power Consumption (W/m², Max.) ≤ 272
• Heat Dissipation (BTU/h/Cabinet, Max.) 188
• Heat Dissipation (BTU/h/Cabinet, Avg.) 62
• Heat Dissipation (BTU/h/㎡, Max.) 928
• Power Supply (V) 100 to 240
• Frame Rate (Hz) 50 / 60
• Refresh Rate (Hz) 3,840

Operation Conditions:

• Lifetime (Hours to Half Brightness) 100,000
• Operating Temperature (°C) -10 to +40
• Operating Humidity 10-80% RH
• IP rating Front / Rear IP50 / IP20

Standard:

• Certification CE, FCC, UL, EMC Class-A
• Fire Protection BS476 Part 7 Class 1

Environment:

• Environment RoHS, REACH

Controller:

• Controller CVHA

Cabinet:

• Color Black
