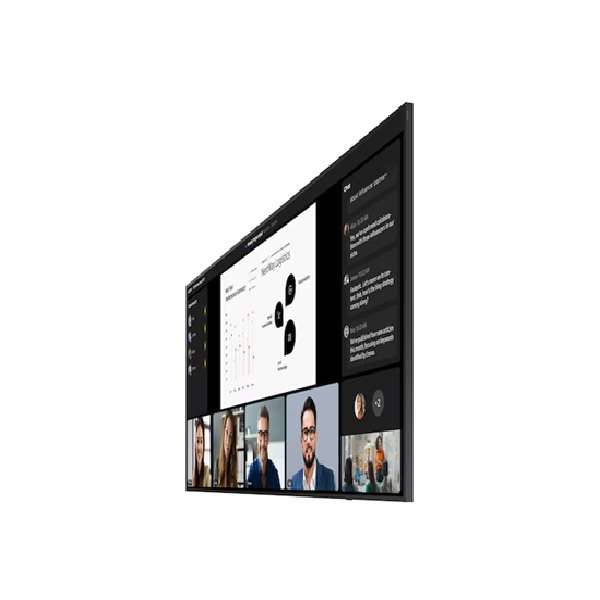

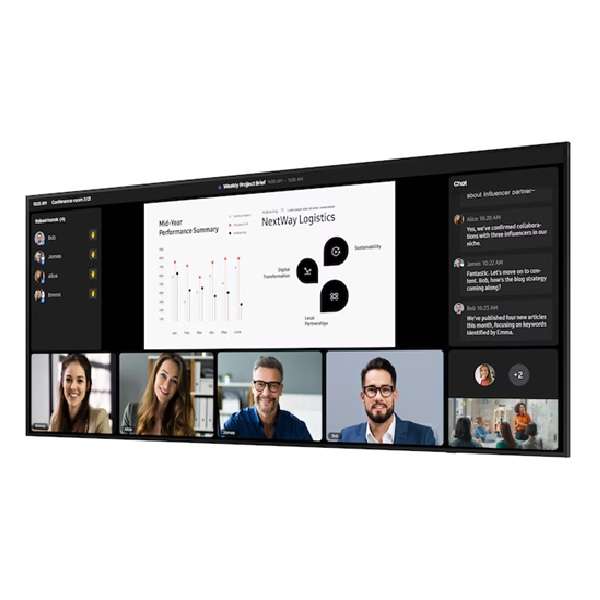

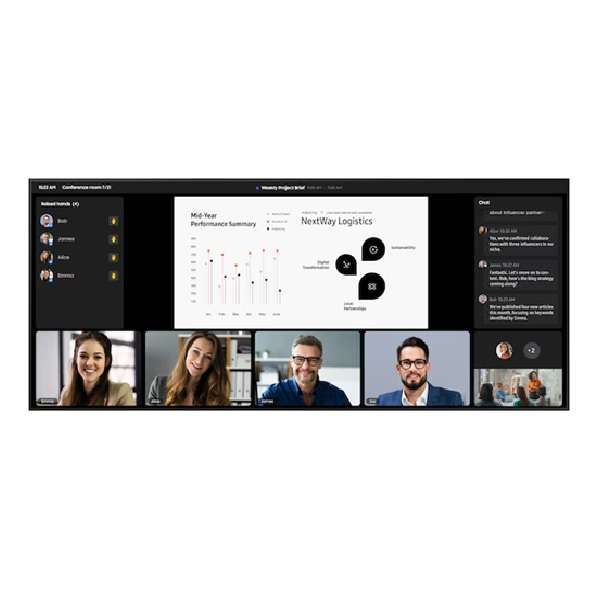

Samsung LH105QPD5BGXXS 105-Inches Ultra HD Smart Signage Display QP105D-5K

Display:

• Diagonal Size 105″
• Panel Type VA(Direct)
• Resolution 5,120 x 2,160
• Pixel Pitch (HxV) 0.1595 x 0.4785 mm
• Brightness (Typ) 500 nit
• Contrast Ratio 4,000:1
• Viewing Angle (H/V) 178/178
• Response Time 6ms(Typ.)
• Colour Gamut 72%(NTSC)
• Glass Haze 25%
• H-Scanning Frequency 30~81kHz
• Maximum Pixel Frequency 742.5MHz
• V-Scanning Frequency 48~75Hz
• Contrast Ratio (Dynamic) Mega
• Operation Time Support 24/7

Connectivity:

• HDMI In 3
• DP In 1
• Version of HDMI 2.1
• Version of DP 1.4
• Version of HDCP 2.2
• USB Type-A(2), Type-C(1)
• IR In Yes
• Audio In No
• Audio Out Stereo Mini Jack
• RS232 In Yes
• RS232 Out Yes
• RJ45 In Yes
• WiFi Yes
• Bluetooth® Yes

Power:

• Power Supply AC100-240V 50/60Hz
• Power Consumption (On Mode) 550 W
• Power Consumption (Sleep Mode) 0.5 W

Dimension:

• Set Dimension (WxHxD) 2484.3 x 1068.0 x 48.1 mm
• Package Dimension (WxHxD) 2668.0 x 1190.0 x 275.0 mm

Weight:

• Set Weight 55.6 kg
• Package Weight 78.1 kg

Operation Conditions:

• Temperature 0℃~ 40℃
• Humidity 10 ~ 80%, non-condensing
• Mechanical Specification:
• VESA Mount 1000 x 400 mm
• Bezel Width 14.8mm (Even)
• Bezel Color Slate Black
• Frame Material Non-Glossy(Metal)

SoC:

• OS Version Tizen 8.0
• Flash Memory Size 16GB

Certification and Compliance:

• EMC Class A
• Safety 60950-1, 62368-1
