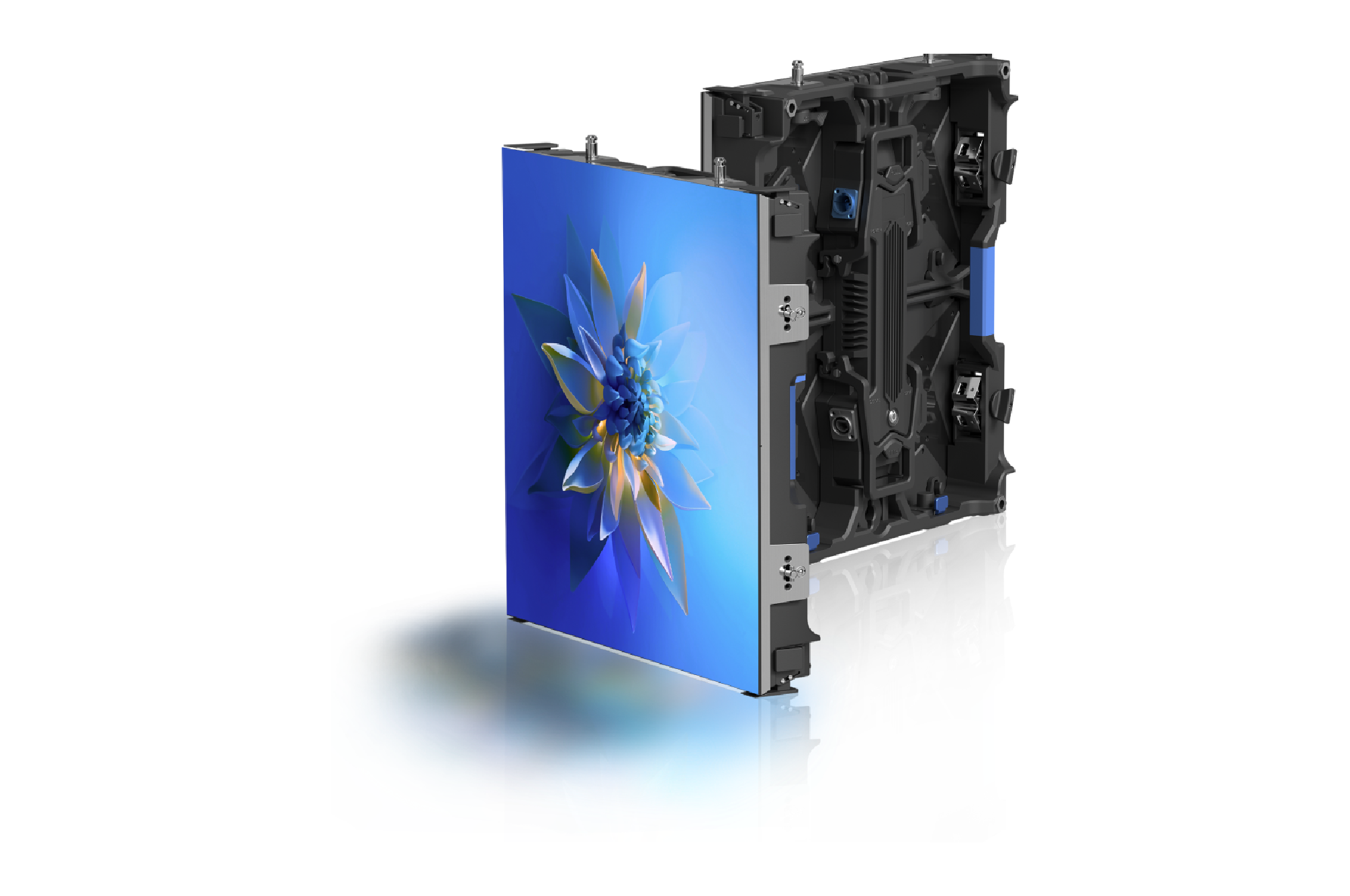

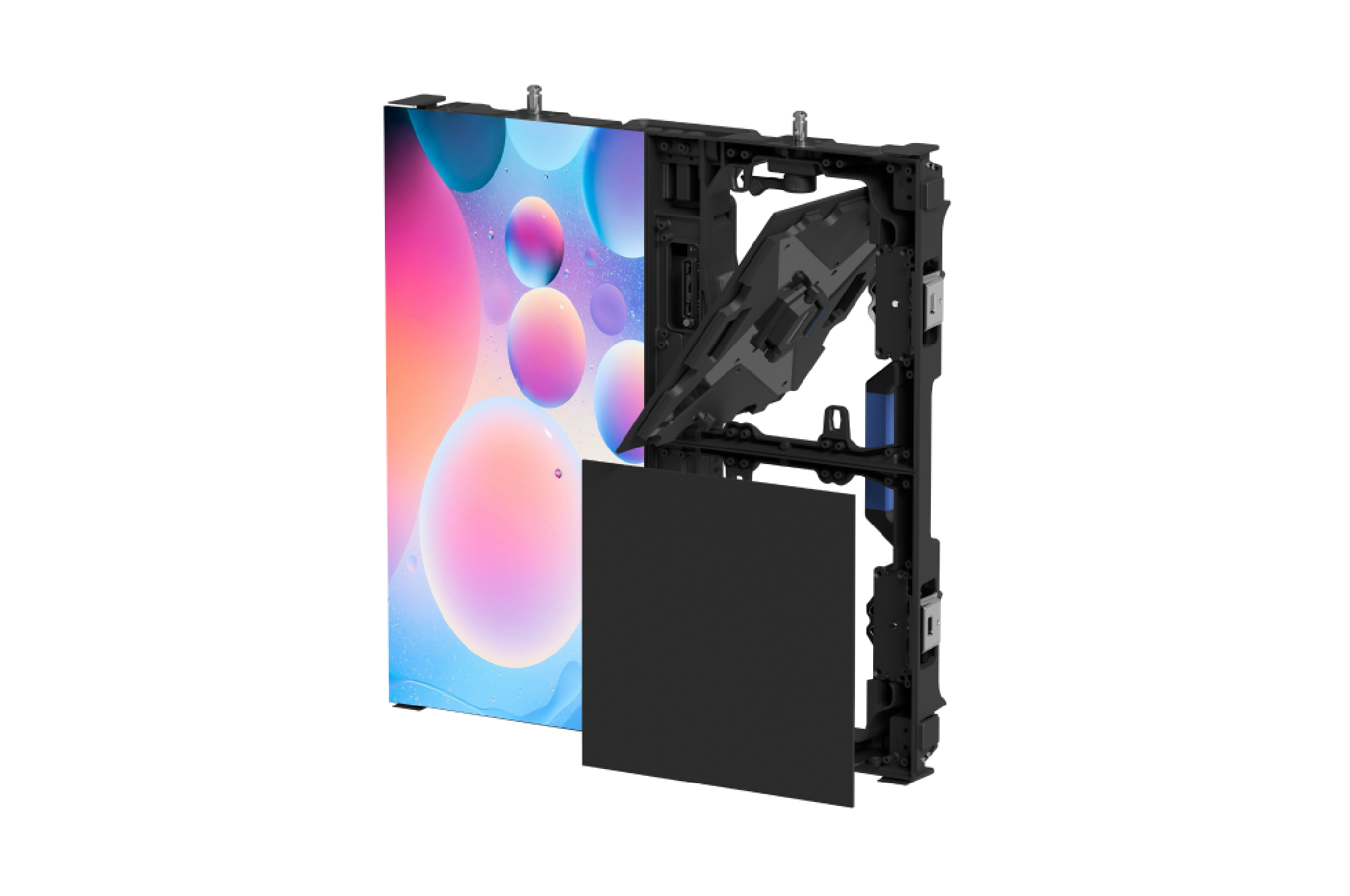

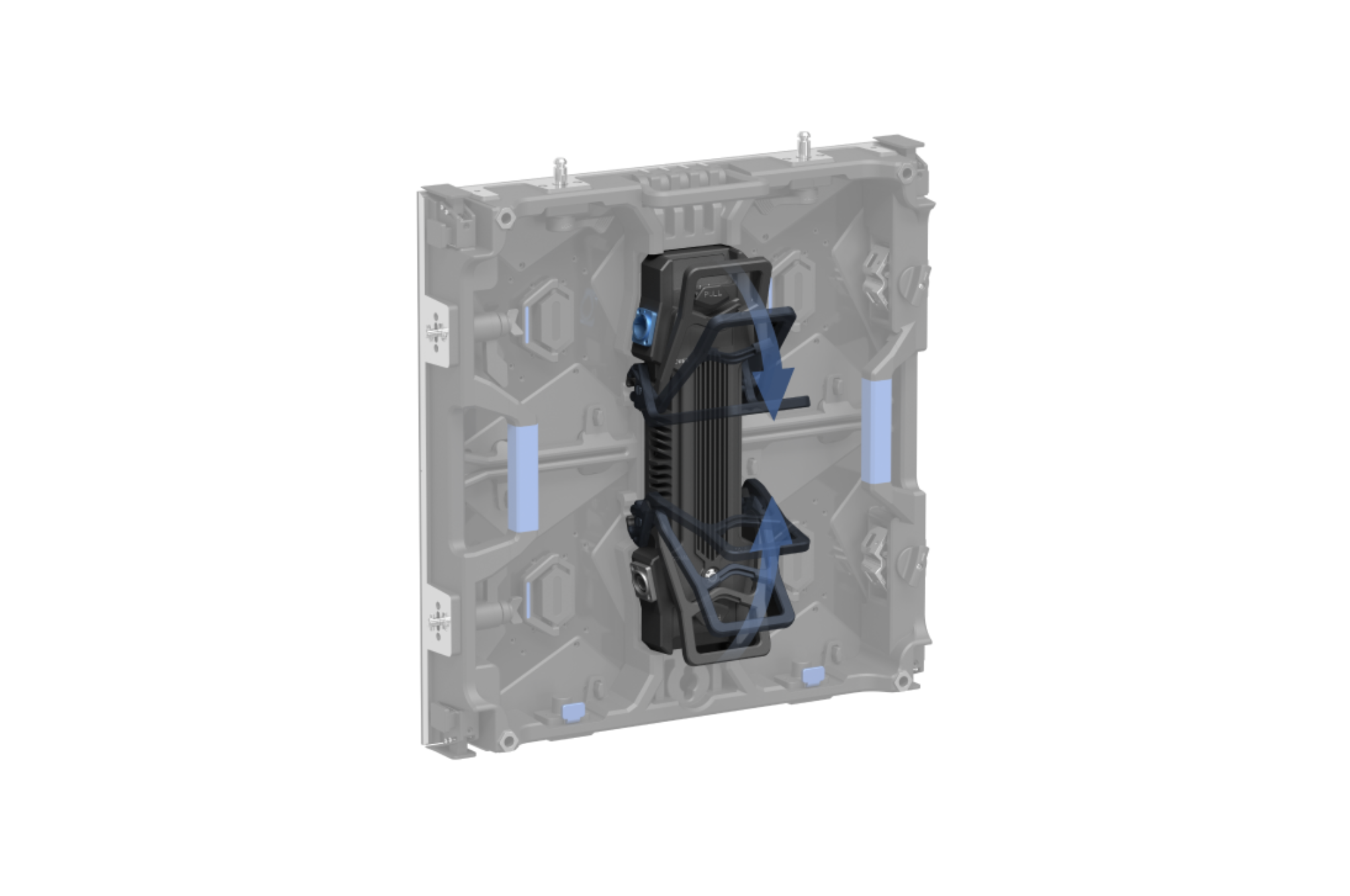

Atlas VX Series Indoor Display

Physical Parameters

• Pixel Pitch: 1.9mm / 2.3mm / 2.6mm / 3.9mm (Ceiling)
• Max Brightness Calibrated: MAX 2200cd (Optional common cathode) / MAX 5000cd
• Panel Dimension: 500mm × 500mm × 80mm
• Panel Resolution (H × V pixels):
  • 1.9mm: 256 × 256 px
  • 2.3mm: 216 × 216 px
  • 2.6mm: 192 × 192 px
  • 3.9mm: 128 × 128 px
• Panel Weight:
  • 1.9mm / 2.3mm / 2.6mm: ~12.5Kg
  • 3.9mm: ~7.8Kg

Electrical Parameters

• Power Consumption (Max / Average W/m²):
  • 1.9mm: 600W / 200W
  • 2.3mm: 720W / 240W
  • 2.6mm: 600W / 200W
  • 3.9mm: 800W / 270W
• Lamp Configuration:
  • 1.9mm: 1212
  • 2.3mm: 1515
  • 2.6mm: 1515
  • 3.9mm: 1921
• Viewing Angle (Horizontal/Vertical): 160° / 160°
• Refresh Rate: 7680Hz

Environmental Conditions

• Operational Temperature / Humidity:
  • -20°C to 45°C, 0~90% RH
  • -4°F to 113°F, 0~90% RH
• Storage Temperature / Humidity:
  • -40°C to 60°C, 0~90% RH
  • -40°F to 113°F, 0~90% RH
• IP Rating: Indoor
