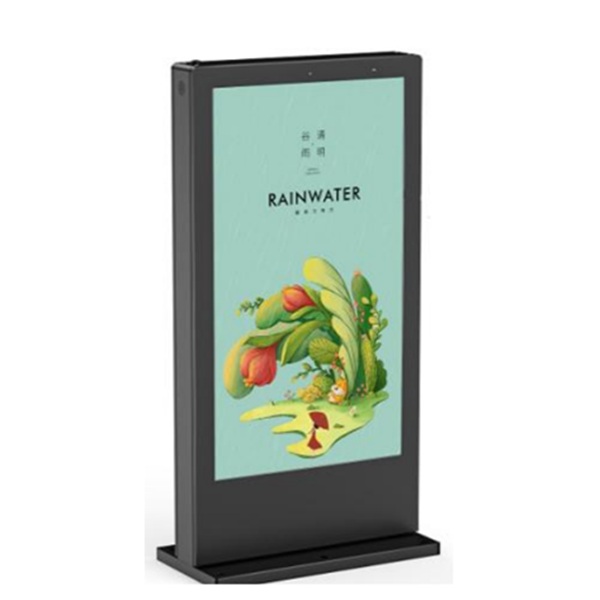

86 Inch Outdoor Floor Standing Digital Signage Display

Display parameters:

• LCD size 86 “
• Panel type TFT-LED
• Aspect ratio 16:9
• Display size 1903.87*1070.93 (mm)
• Physical resolution 4K 3840 (RGB) * 2160 (FHD)
• Refresh rate 60Hz
• Brightness 2500cd/㎡
• Contrast 1500:1
• Response time 6ms
• Perspective 178°/178°/178°/178°
• Display protection 6mm full tempered high explosion-proof glass
• Backlight life 50000 hours
• Brilliance control Light sensing senso(Energy saving)

Motherboard configuration/interface:

• CPU: 3568K
• Operating system: Android 11
• Running memory: 4GB
• Storage: 32G
• Storage Expansion: Supports up to 32GB SD card expansion
• Network: LAN/WiFi/4G module (optional)
• Bluetooth: optional
• Interface: USB2.0 * 2 HDMI Out * 1
  HDMI In MicroPhone * 1
  Audio output * 1 SD card * 1
  Horn: 8 Ω 10W * 2

Packaging specifications:

• Product weight:224KG
• Packaging specifications: Mainly based on physical products (standard
  packaging is made of pearl cotton)
• wooden case packing: mainly based on physical objects

Structural parameter description:

• Installation method: Floor-to-ceiling installation

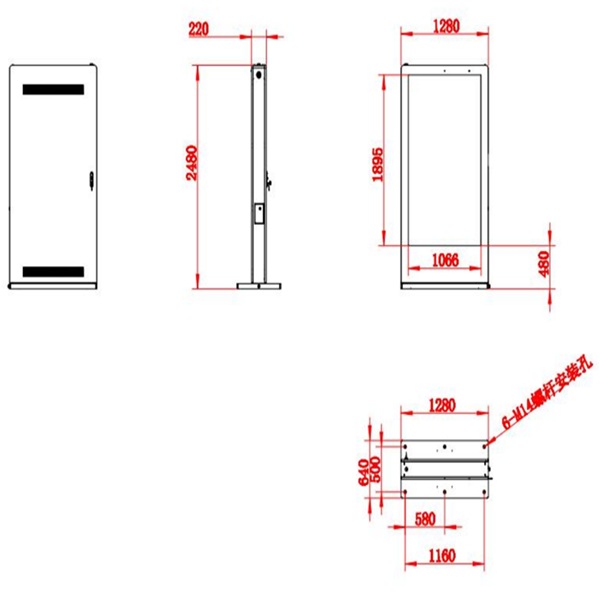

• External dimensions: See the external dimension diagram
• Color: Black/White/Red/Silver Grey/Dark Grey/Customized
• Material: 1.5mm galvanized steel sheet.Baking lacquer process
• Protection level: IP65
• Waterproof: Three-layer composite sealing strip
• Dust prevention: 3M high air volume filter
• Anti theft: three-level door lock protection, hidden screw design
• Explosion proof: 6mm full tempered high explosion-proof glass
• Anti rust and anti-corrosion: High-strength galvanized steel sheet

Heat dissipation method description:

• Heat dissipation method: intelligent temperature controlled
  air cooling system
• Temperature protection: supports high temperature protection
• Fan: Industrial grade high air volume silent fan, supporting speed regulation and noise reduction (energy-saving)

Touch (optional):

• Touch type G+G capacitive waterproof touch
  G+F nano waterproof touch
• Point count 10 points
• Touch accuracy 99% accuracy
• Operating system Windows/Android/MacOS/Linux/HarmonyOS
• Working temperature -30 ℃ -60 ℃

Work environment:

• Working temperature: -10℃ -50℃ (if the ambient temperat ure is below -10℃, it is recommended to choose a heater)
• Working humidity: 5% -90%
• Storage temperature: -20 ℃ -60 ℃
• Storage humidity: 10% -85%

Power

• Input voltage: AC110-220V
• Working power consumption: ≤ 1590W
• Standby power consumption: ＜3W
